点击放大查看

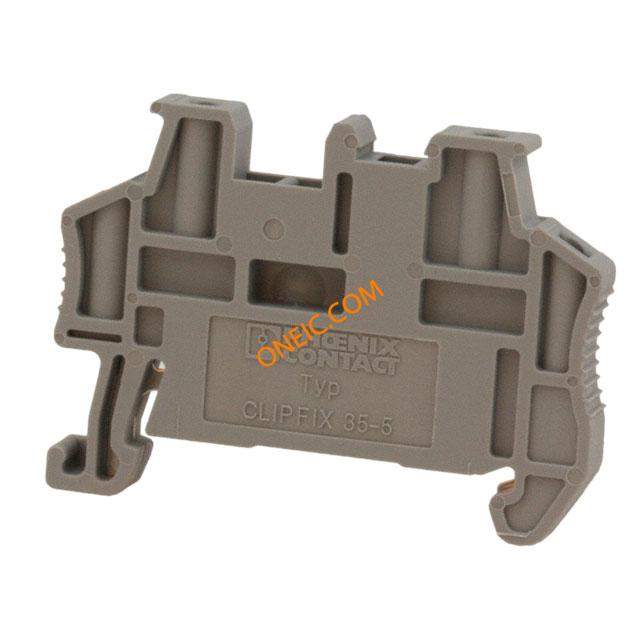

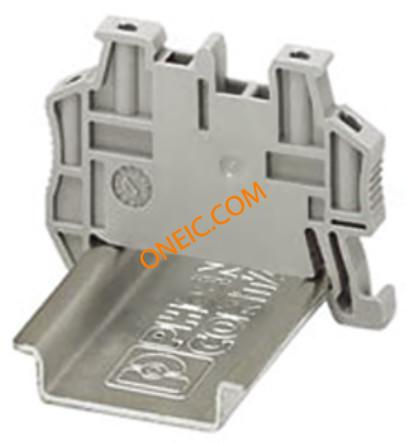

3022276

制造商	Phoenix Contact GmbH & Co. KG
描述	Terminal Block Tools & Accessories CLIPFIX 35-5 Connector Accessories End Clamp Polyamide Gray END BRACKET TERM BLOCK SNAP ON Phoenix Contact 3022276 End Bracket Terminal Block, Series: CLIPFIX END CLAMP, DIN RAIL MOUNT EndBracket;TermBlk;SnapOn;35mmH;48.5mmL;5.5mmW Holder Phoenix Contact CLIPFIX 系列端子架
分类	连接器解决方案接线端子接线端子与连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

产品	Tools & Accessories	产品类别	Terminal Block Tools & Accessories
标准包装数量	50	工厂包装数量	50

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	82041100

机械参数

颜色	Gray	深度	5.15
宽度	:5.15mm	高度	35mm
长度	48.5mm	重量	0.177781 oz
材料（通用）	Polyamide (PA)	连接器用途	holder
总长度	48.5	包装数量	50
主要材料	EndBracket

产品信息

SPG	50	类型	End Clamp
系列	CLIPFIX	制造商全称	CLIPFIX
附件类型	Terminal bracket	单元数量	1
基础产品编号	CLIPFIX35-5	适用产品/相关产品	CLIPLINE Series
