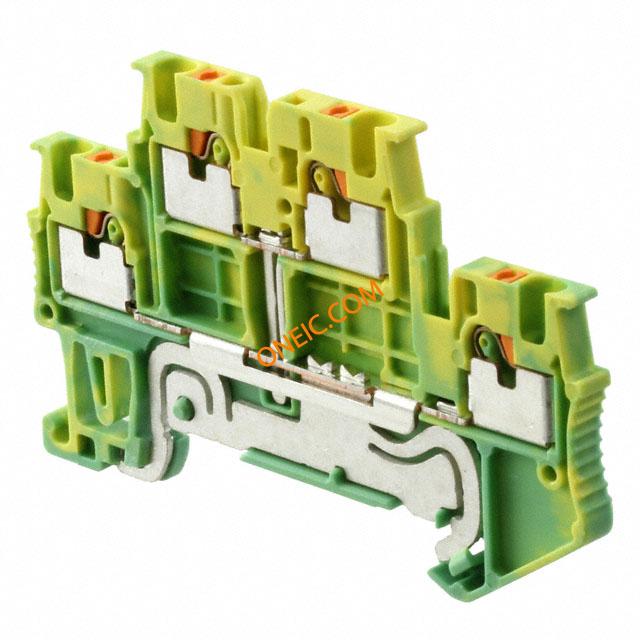

3208537
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks PTTB 1,5/S-PE Conn Terminal Block 4 POS PROTECTVE COND DBL-LVL TERM BLCK Conn;TermBlk;DIN-Rail;DblLevel;Ground;Push-in;4Conts;3.5mmSpng;26-14AWG;GRN-YL |
| 分类 |
商业参数
| 商标名 | CLIPLINE PT | 产品类别 | DIN Rail Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Green, Yellow | 宽度 | 3.5 mm |
| 高度 | 42.6 mm, 50.1 mm | 长度 | 65.4 mm |
| 导线线规 | 26 | 安装类型 | NS 35/7.5, NS 35/15 |
| 安装样式 | DIN Rail | 剥线长度（范围） | 8mm |
| 端子宽度 | 3.5mm | 端接样式 | Push In, Spring |
| 触点数 | 4 | 位数 | 4 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 14-26 AWG |
| 线规或范围 - mm² | 0.14-1.5mm² | ||
产品信息
| 类型 | Ground, Earth | 系列 | PT |
| 层数 | 2 | ||
