3245040
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | DIN Rail Terminal Blocks UTN 10 Conn Neutral Disconnect Blocks Screw Cable Mount 57A N DISCONNECT TERMINAL BLOCK UTN10 Din Rail Terminal |
| 分类 |
商业参数
| 商标名 | CLIPLINE UT | 其他名称 | UTN10 |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - IEC | 57A | IEC电压 | 400V |
| 额定电压 | 400 V | 最大额定电流 | 57A |
机械参数
| 颜色 | 蓝色 | 长度 | 2.165" (55.00mm) |
| 端接方式 | Screw | 高度（最大） | 1.870" (47.50mm) |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 剥线长度（范围） | 10mm | 端子宽度 | 10.2mm |
| 端接排数 | 螺钉 | 端接样式 | Special, Hybrid |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 6-20 AWG | 线规或范围 - mm² | 0.5-16mm² |
产品信息
| 类型 | Neutral Disconnect Blocks | 系列 | UT |
| 层数 | 1 | ||
环境参数
| 工作温度 | +120°C | ||
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0824605
Phoenix Contact
Terminal Block Tools & Accessories UC-TM 10 CUS UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 CUS 1 sheet is 1 piece UC-TM10CUS
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
0818069
Phoenix Contact
Unspecified Tools & Accessories UC-TM 10 UNICARD 48 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=48 LABELS Terminal Block Tools & Accessories UC-TM 10 UNICARD 48 SECTION MarkerCard;TermBlk;10.2mm;48labelspercard;white
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹

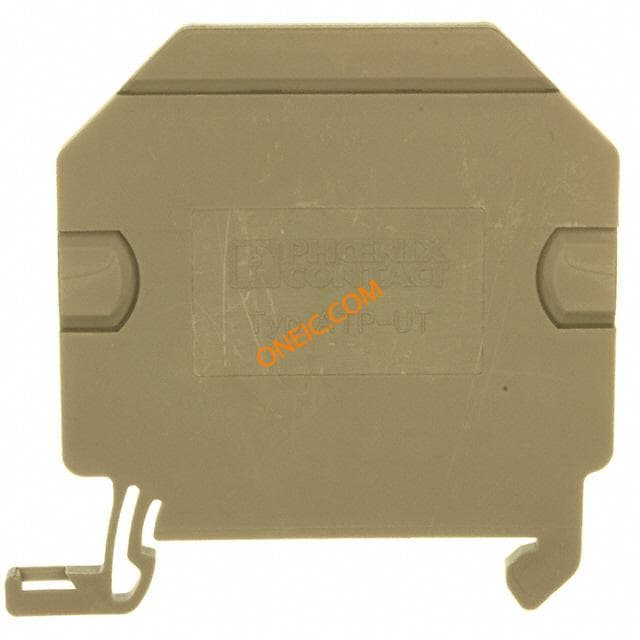

3047167
