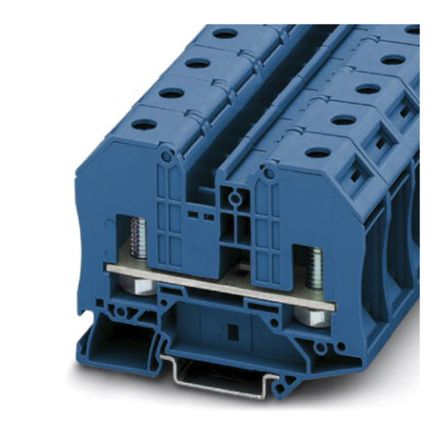

3049148
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Misc Products CONN TERM BLOCK RT8BU Non-Fused Terminal Block |
| 分类 |
商业参数
| 其他名称 | RT 8 BU | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 30A | UL电压 | 600V |
| 电流 - IEC | 125A | IEC电压 | 1000V |
| 额定电压 | 1000 V | 最大额定电流 | 125A |
机械参数
| 颜色 | Blue | 端子宽度 | 20.3mm |
| 端接排数 | 栓 | 端接样式 | Bolt and Nut |
| 位数 | 2 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 2-14 AWG | 线规或范围 - mm² | 2.5-35mm² |
产品信息
| 类型 | Feed Through | 系列 | RT |
| 层数 | 1 | ||
文档与媒体
相关型号
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH

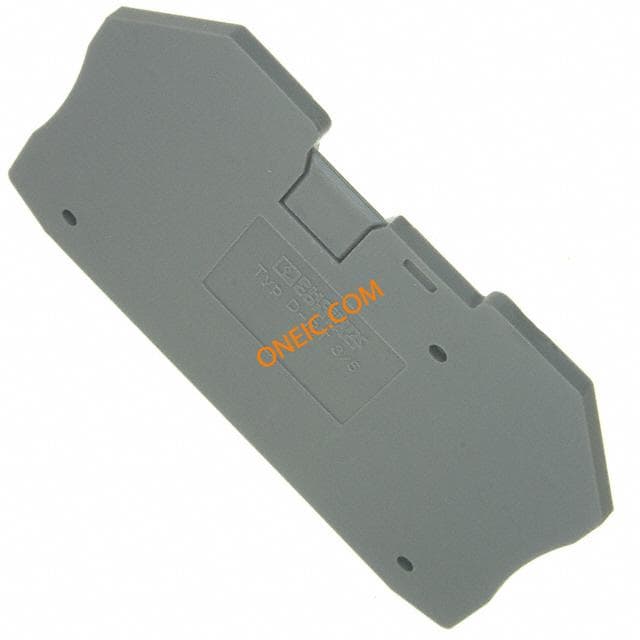

3049194
Phoenix Contact
ターミナルブロック・ツールとアクセサリ D-RT 8 END COVER Connector Accessories Cover Gray END COVER GRAY Terminal Block Tools & Accessories D-RT 8 END COVER Cover;TermBlk;RT-8Series;Gray;2.2mmW

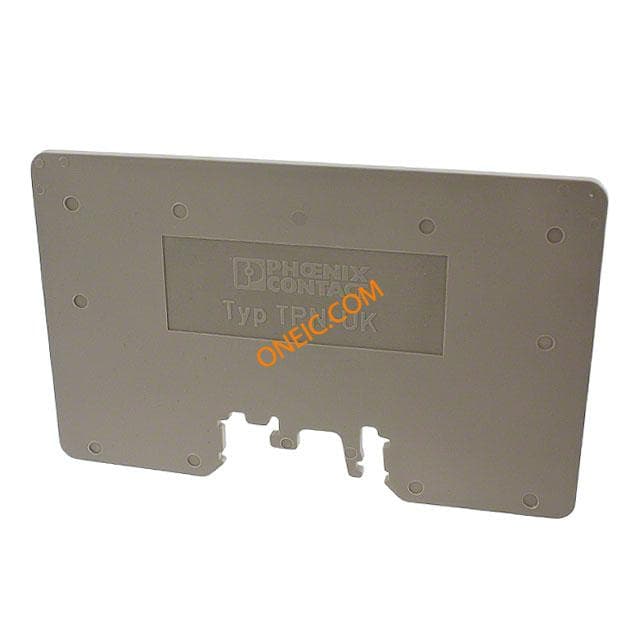

3003062
