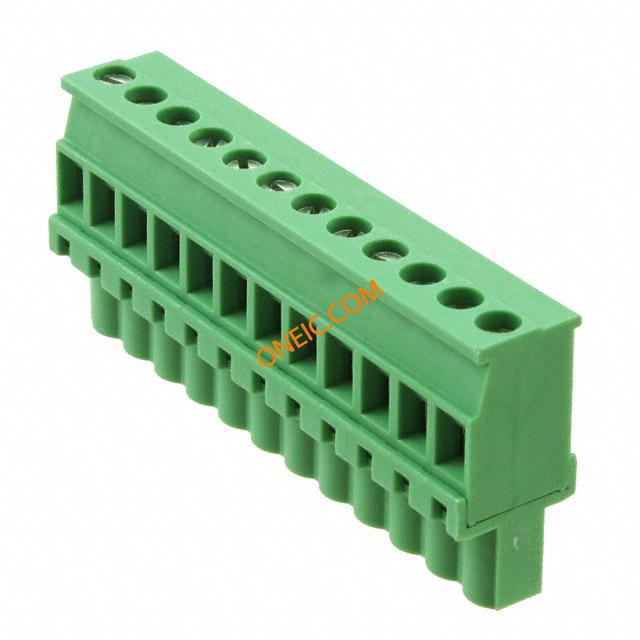

点击放大查看
1792854
| 制造商 | |
| 描述 | Pluggable Terminal Blocks 5.08 12P PLUG 270DEG Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 12POS 5.08MM Non-Fused Terminal Block Cable Mount 12 Way, Screw Down, 250V Conn Terminal Blocks F 12 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 12WAY Conn;TermBlk;Plug;Screw;12;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 12 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12A |
| 最小输入电压 | 320V | 最小供电电压 | 250V |
机械参数
| 颜色 | Green | 深度 | 12.6 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 26 mm |
| 长度 | 7 mm | 重量 | 4.691437 oz |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | :Terminal Block, Pluggable |
| 接触镀层 | Tin | 安装样式 | Cable |
| 排数 | 1 | 插头进线方向 | 270° |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 总长度 | 60.96 mm | 端接样式 | Through Hole |
| 触点数 | 12 | 位数 | 12 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 24-12 |
| 线规或范围 - mm² | 12 | 第一连接器安装类型 | :Cable |
| 每排/每行位置数 | 12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | :MVSTBW | 产品特性 | Retention Latches (Non-Wire Side) |
| CAD图纸 | 3D CAD Model | 行业别名 | MVSTBW 2, 5/12-ST-5, 08 |
| 层数 | 1 | 每层位数 | 12 |
