点击放大查看

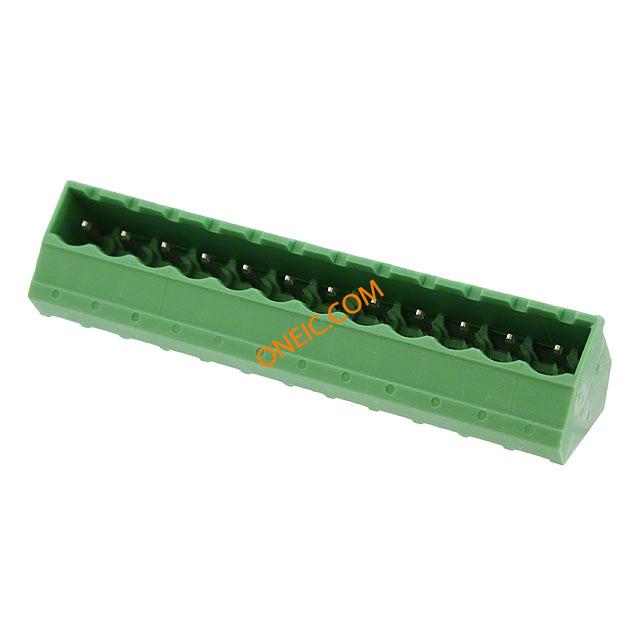

1767478
| 制造商 | |
| 描述 | Pluggable Terminal Blocks SMSTBA 2 5/12-G-5 08 Conn Shrouded Header HDR 12 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 12POS 5.08MM Header for PCB plug connector SMSTBA 2,5/12-G-5,08 HEADER,PITCH:5.08MM,POS12 |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 16.5 |
| 间距 | 0.200" (5.08mm) | 高度 | 14.8 |
| 重量 | 5.502738 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 62.96 | 端接样式 | Through Hole |
| 排针方向 | 45° | 触点数 | 12 |
| 位数 | 12 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | SMSTBA | 行业别名 | SMSTBA 2, 5/12-G-5, 08 |
| 层数 | 1 | 每层位数 | 12 |
