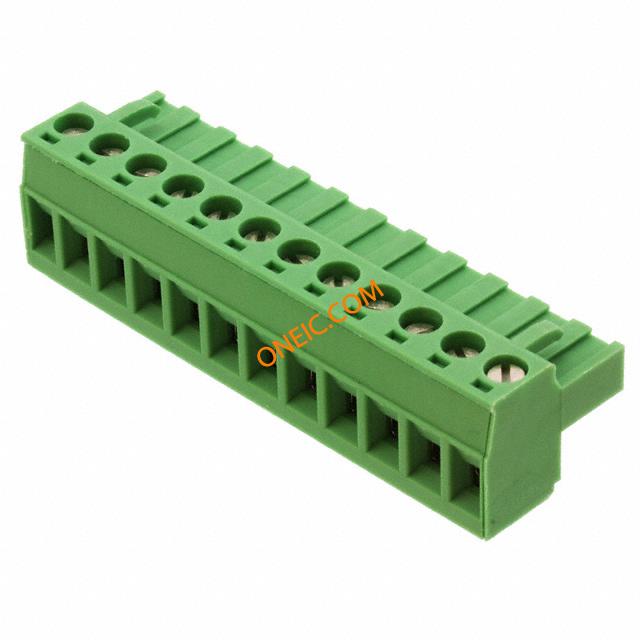

1781085

点击放大查看

1781085

制造商
Phoenix Contact GmbH & Co. KG
描述
Pluggable Terminal Blocks MSTBT 2 5/12-ST-5 08 Conn Terminal Block 12 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM Non-Fused DIN Rail Terminal, 10A, 300V, Green ,Screw Down Termination Conn Terminal Blocks 12 POS 5.08mm Screw Cable Mount 10A MSTBT25/12-ST-508 Phoenix Contact MSTBT 2 系列 绿色 Combi 插头 , 10A, 300 V
分类
连接器解决方案接线端子DIN导轨接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs交货时间12 Days
商标名COMBICON Control子类别Connector Terminal Blocks
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
抗辐射加固No

电气参数

电流15A电压300V
额定电压300 V最大额定电流10A
最小输入电压320V最小供电电压300V

机械参数

颜色Green深度18.2 mm
间距0.200" (5.08mm)高度15 mm
重量4.585615 oz包装方式Bulk
导线线规12-30 AWG端接方式Screw
安装类型Cable Mount接触镀层Tin
安装样式Cable排数1
插头进线方向180°壳体材料Polyamide
总长度60.96 mm端接排数螺钉拧紧
端接样式Screw连接器颜色Green
触点数12位数12
接线端子类型Plug, Female Sockets线规或范围 - AWG24-12
线规或范围 - mm²30 → 12 AWG

产品信息

类型Terminal Block系列MSTBT 2
产品特性Retention Latches (Non-Wire Side)行业别名MSTBT 2, 5/12-ST-5, 08
叠层数单层层数1
每层位数12

文档与媒体

PDF 文档
1781085

相关型号

1735785

1735785

Phoenix Contact

Pluggable Terminal Blocks MSTBW 2 5/12-G-5 08 5.08mm 12P R/A HDR Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/12-G-5,08 MSTBW25/12-G-508 Phoenix Contact COMBICON MSTBW 系列 12路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A

¥24.4800
详情
1769560

1769560

Phoenix Contact

プラグ着脱可能ターミナルブロック 5.08 12P HEADER 45DG Conn Shrouded Header HDR 12 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 12POS 5.08MM Pluggable Terminal Blocks 5.08 12P HEADER 45DG Conn;TermBlk;PCB;Header;SnglLvl;45DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON

¥18.3600
详情
1859616

1859616

Phoenix Contact

プラグ着脱可能ターミナルブロック 12P 5.08mm 180 DEG Conn Shrouded Header HDR 12 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/12-G-5,08 Pluggable Terminal Blocks 12P 5.08mm 180 DEG Header, Nominal current: 12 A, Nom. voltage: 200 V, Pitch: 5.08 mm, Number of positions: 12, Assembly: Press-in Conn;TermBlk;PCB;Header;SnglLvl;Sldr;12Pole;5.08mmPitch;COMBICON

¥27.8800
详情

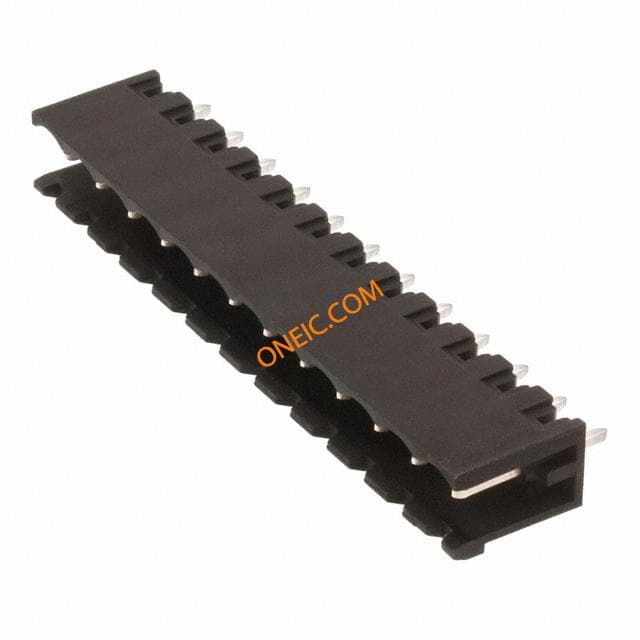

1746981
