点击放大查看
1735785
| 制造商 | |
| 描述 | Pluggable Terminal Blocks MSTBW 2 5/12-G-5 08 5.08mm 12P R/A HDR Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/12-G-5,08 MSTBW25/12-G-508 Phoenix Contact COMBICON MSTBW 系列 12路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | 最小供电电压 | 320V |
机械参数
| 颜色 | Gray | 深度 | 12 mm |
| 间距 | 5.08 mm | 高度 | 12.4 mm |
| 重量 | 5.396916 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | 锡 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 总长度 | 60.96 mm | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 12 | 位数 | 12 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MSTBW | 产品特性 | Standoffs |
| 层数 | 1 | 每层位数 | 12 |
文档与媒体
相关型号

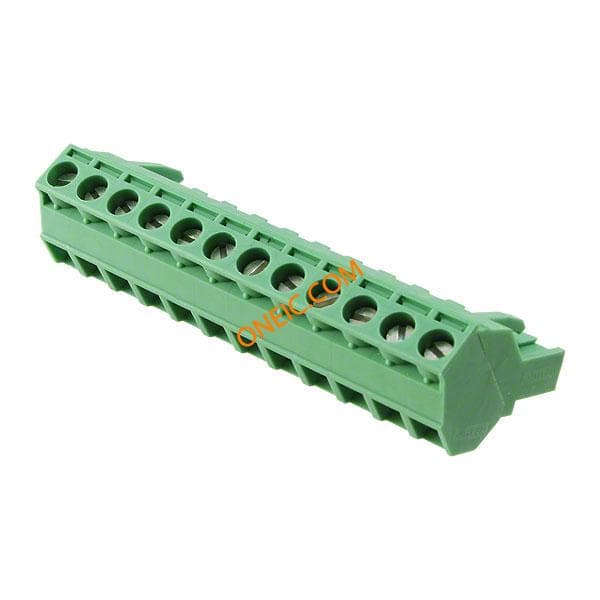

1826380
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.08 12P PLUG 45DEG Conn Terminal Block F 12 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 12POS 5.08MM Printed-circuit board connector SMSTB 2,5/12-ST-5,08 Pluggable Terminal Blocks 5.08 12P PLUG 45DEG Conn;TermBlk;Plug;Screw;12;5.08mm;30-12AWG;10A;300V;PA
1764280
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTB 2 5/12-STZ-5 08 Conn Terminal Block F 12 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 12POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/12-STZ-5,08 Pluggable Terminal Blocks MSTB 2 5/12-STZ-5 08 MSTB25/12-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 12 路 母 绿色 插头, 螺钉端接

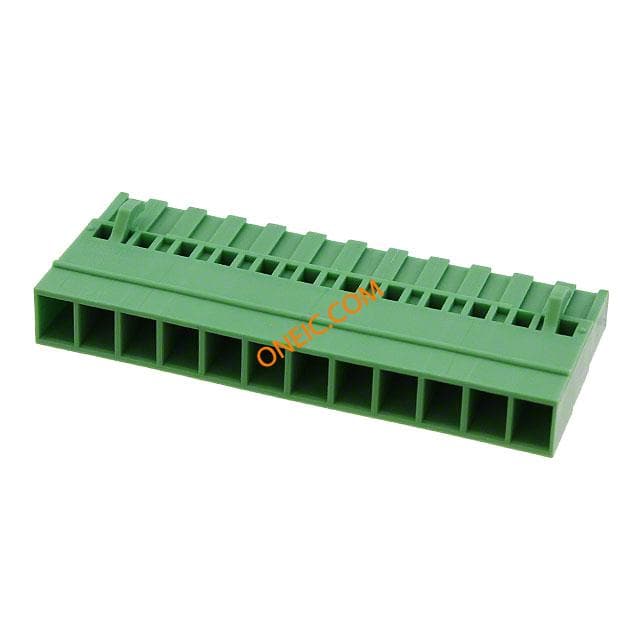

1808913
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2.5/12-ST-5.08 Conn Terminal Block F 12 POS 5.08mm Crimp ST Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM MSTBC25/12-ST-508
1792854
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P PLUG 270DEG Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 12POS 5.08MM Non-Fused Terminal Block Cable Mount 12 Way, Screw Down, 250V Conn Terminal Blocks F 12 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 12WAY Conn;TermBlk;Plug;Screw;12;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 12 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V
1777387
Phoenix Contact
Pluggable Terminal Blocks 12P 5.08mm 180deg Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM Non-Fused Terminal Block Cable Mount 12 Way, Screw Down, 250V FRONT-MSTB25/12-ST-508
1757116
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P PLUG 180DEG Conn Terminal Block F 12 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM MSTB 2,5/12-ST-5,08 Conn Terminal Blocks F 12 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;12;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 12 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1792346
Phoenix Contact
Pluggable Terminal Blocks 5.08 12P PLUG 90DEG Conn Terminal Block F 12 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 12POS 5.08MM Conn Terminal Blocks F 12 POS 5.08mm Screw ST Cable Mount 12A PLUG, FREE, 5.08MM, 12WAY Conn;TermBlk;Plug;Screw;12;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 12 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1786501
Phoenix Contact
Pluggable Terminal Blocks IC 2 5/12-G-5 08 Conn Wire to Board HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Phoenix Contact IC Series 5.08mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 12A Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;12Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON IC 系列 5.08mm节距 12路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A , 通孔

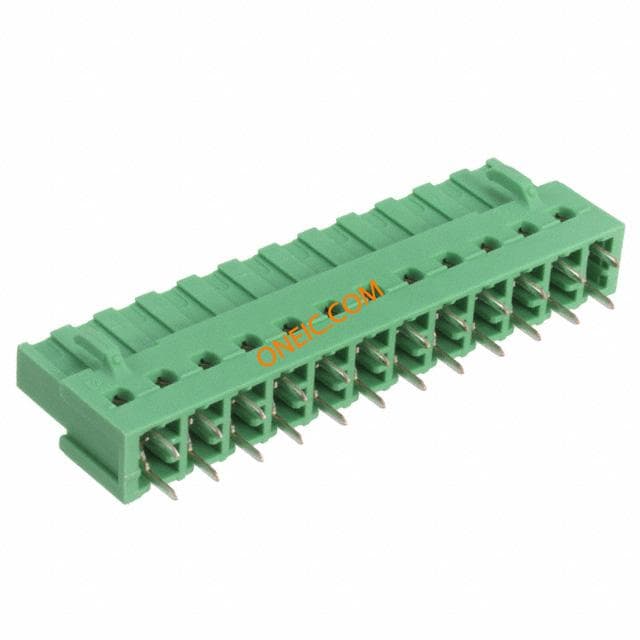

1786048
Phoenix Contact
Pluggable Terminal Blocks ICV 2 5/12-G-5 08 5.08mm 12P PLUG Conn Wire to Board HDR 12 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 12POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,12way ICV25/12-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 12路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔
1781085
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2 5/12-ST-5 08 Conn Terminal Block 12 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 12POS STR 5.08MM Non-Fused DIN Rail Terminal, 10A, 300V, Green ,Screw Down Termination Conn Terminal Blocks 12 POS 5.08mm Screw Cable Mount 10A MSTBT25/12-ST-508 Phoenix Contact MSTBT 2 系列 绿色 Combi 插头 , 10A, 300 V
1873757
Phoenix Contact
Pluggable Terminal Blocks FKCVW 2.5/12-ST-5.08 Conn Terminal Block 12 POS 5.08mm Cable Mount 12A TERM BLOCK PLUG 12POS 5.08MM FKCVW25/12-ST-508 Phoenix Contact COMBICON FKCVW 系列 5.08mm 节距 12 路 母 绿色 插头, 弹簧笼端接

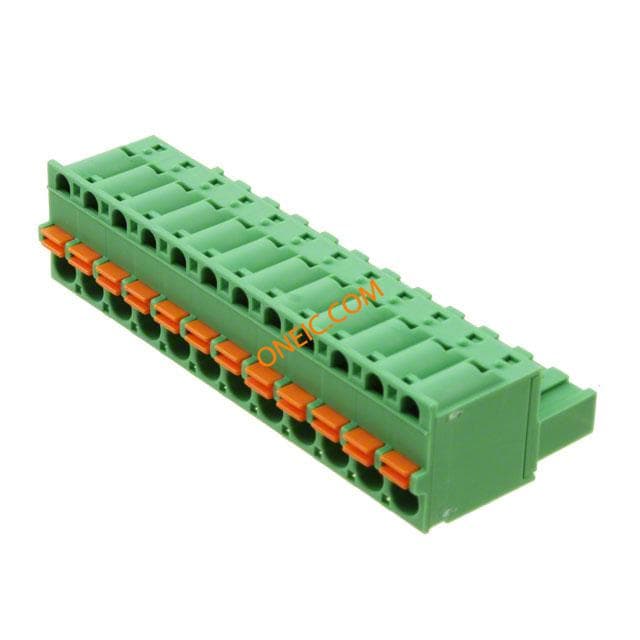

1873155
