1754601

点击放大查看

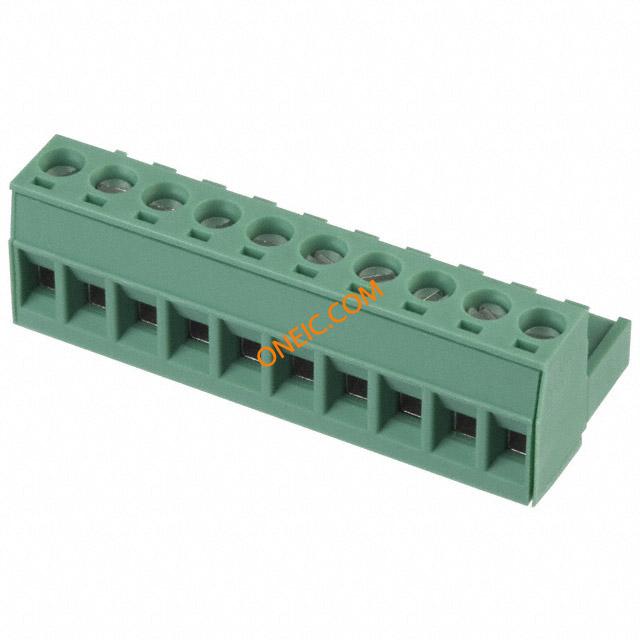

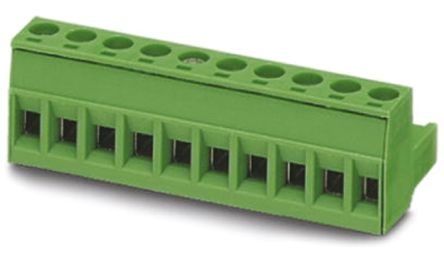

1754601

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks 5.00 10P PLUG 180DEG Conn Terminal Block F 10 POS 5mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 10 路 母 绿色 直 插头, 插入式, 螺钉端接
分类
连接器解决方案接线端子螺丝接线端子
对参数有疑问？问 AI 助手

商业参数

产品Plugs交货时间20 Days
商标名COMBICON Control子类别Connector Terminal Blocks
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压250 V供电电压300V
最大额定电流12 A最小输入电压320V

机械参数

颜色Green深度18.2
间距0.197" (5.00mm)宽度45mm
高度15重量1.323 lbs
材料（通用）聚酰胺包装方式Bulk
导线线规12-30 AWG方向直
端接方式Screw安装类型Right Angle
连接器类型母座接触镀层Tin
排数1插头进线方向180°
壳体材料Polyamide总长度50
端接排数螺钉电缆端接方式180°
端接样式Screw触点数10
位数10接线端子类型Plug, Female Sockets
每层极数10线规或范围 - AWG24-12

产品信息

类型Terminal Block连接器性别F
系列MSTB产品特性Retention Latches (Non-Wire Side)
主要用途Retention Latches (Non-Wire Side)行业别名MSTB 2, 5/10-ST
层数1每层位数10
输出配置Free Hanging (In-Line)

文档与媒体

PDF 文档
1754601
