点击放大查看
1765085
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 10P 5mm Conn Terminal Block HDR 10 POS 5mm RA 12A TERM BLK PLUG-IN 10POS 5.0MM GRN Header MSTBHK 2,5/10-G MSTBHK25/10-G |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 28 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Gray | 间距 | 5 mm |
| 高度 | 24.2 | 长度 | 2.059" (52.30mm) |
| 重量 | 2 lbs | 高度（最大） | 1.091" (27.70mm) |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 接触镀层 | Tin | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 52 |
| 剥线长度（范围） | 7mm | 端子宽度 | 29.1mm |
| 端接样式 | Plug Receptacles, Screw | 触点数 | 10 |
| 位数 | 10 | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
| 线规或范围 - AWG | 12-30 AWG | 线规或范围 - mm² | 0.2-2.5mm² |
产品信息
| 类型 | Terminal Block | 连接器性别 | HDR |
| 系列 | MSTB | 行业别名 | MSTBHK 2, 5/10-G |
| 层数 | 1 | ||
文档与媒体
相关型号
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL
1765852
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTBP 2,5/10-ST Connector;PCB;12A;320V;10-Pos.;ScrewConn.;Green
1759004
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTB 2 5/10-STZ Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-STZ Pluggable Terminal Blocks MSTB 2 5/10-STZ MSTB2,5/10-STZ
1401637
Phoenix Contact
ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹
1754601
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 180DEG Conn Terminal Block F 10 POS 5mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 10 路 母 绿色 直 插头, 插入式, 螺钉端接
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
1792090
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 90DEG Conn Terminal Block F 10 POS 5mm Screw ST Cable Mount 12A TERM BLOCK PLUG 10POS 90DEG 5MM COMBICON PCB plugs MVSTBR 2,5/10-ST Conn Terminal Blocks F 10 POS 5mm Screw ST Cable Mount 12A Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA
1768833
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 45DEG Conn Terminal Block F 10 POS 5mm Screw Cable Mount 12A TERM BLOCK PLUG 10POS 225DEG 5MM Printed-circuit board connector SMSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA
1765250
Phoenix Contact
Pluggable Terminal Blocks 5mm 10P PRE-PRINTED 1-10 LEFT TO RIGHT Conn Terminal Block 10 POS 5mm 12A TERM BLOCK PLUG 10POS STR 5MM Conn;TermBlk;Plug;Screw;10;5mm;Green;12A;250V;Pre-Printed
1862548
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/10-ST BK BD:1-10 Plug PL 10 POS 5mm TERM BLOCK PLUG 10POS STR 5MM MSTB25/10-STBKBD:1-10

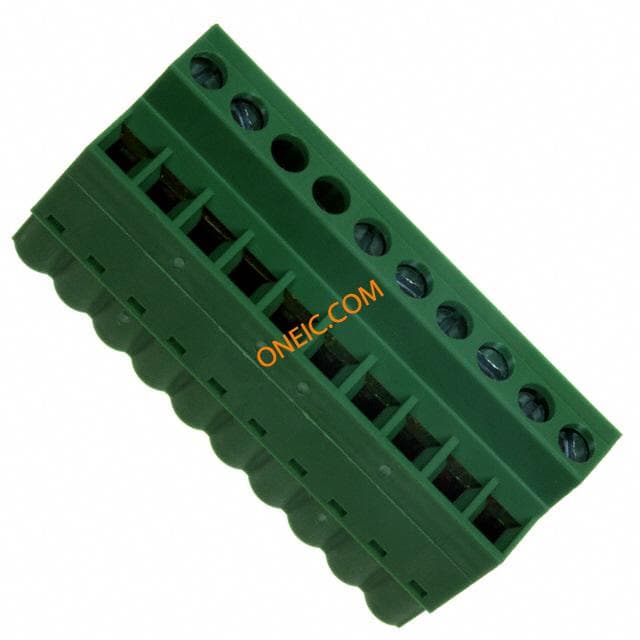

1779495
