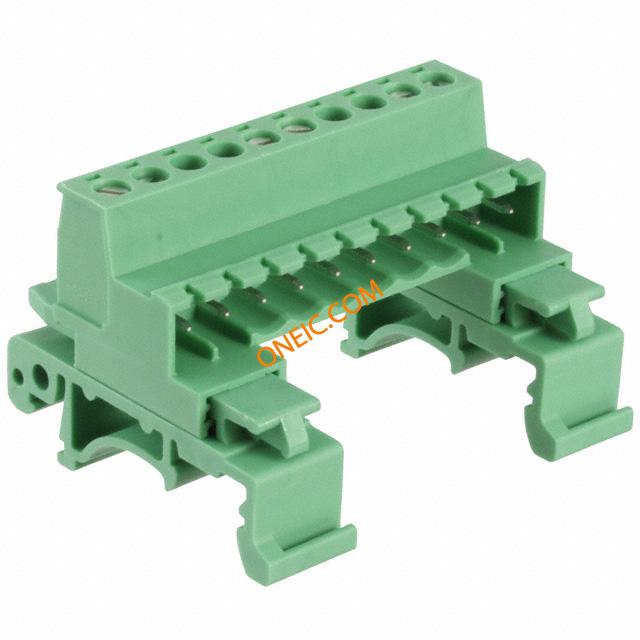

点击放大查看
1765768
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | プラグ着脱可能ターミナルブロック UMSTBHK 2 5/10-G Conn Terminal Block HDR 10 POS 5mm Screw RA 12A DIN RAIL PLUG-IN UNIT 5.0MM GRN Header for PCB plug connector UMSTBHK 2,5/10-G Pluggable Terminal Blocks UMSTBHK 2 5/10-G Conn Terminal Blocks HDR 10 POS 5mm Screw RA 12A Conn;TermBlk;Plug;DINRail;10;5mm;24-12AWG;12A;250V |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL94 V-0 |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 电流 - IEC | 12A | IEC电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 深度 | 42.5 mm | 间距 | 5 mm |
| 高度 | 33 mm | 长度 | 2.059" (52.30mm) |
| 重量 | 12.345887 oz | 导线线规 | 24 |
| 端接方式 | Screw | 高度（最大） | 1.496" (38.00mm) |
| 外壳颜色 | Green | 安装类型 | Right Angle |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 52.3 mm | 剥线长度（范围） | 7mm |
| 端子宽度 | 29.1mm | 端接样式 | Plug Receptacles, Screw |
| 触点数 | 10 | 位数 | 10 |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 线规或范围 - AWG | 12-30 AWG |
| 线规或范围 - mm² | 0.2-2.5mm² | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | HDR |
| 行业别名 | UMSTBHK 2, 5/10-G | 层数 | 1 |
| 基础产品编号 | UMSTBHK2,5/10-G | ||
