点击放大查看
1762774
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MDSTB 2.5/10-G1 Conn Shrouded Header HDR 20 POS 5mm Solder RA Thru-Hole TERM BLOCK HDR 20POS R/A 5MM Header for PCB plug connector MDSTB 2,5/10-G1 MDSTB25/10-G1 Phoenix Contact COMBICON MDSTB 系列 10路 5mm节距 PCB 接线端子块 , 焊接端接, 10A |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 12 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 10 A |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Green | 深度 | 22 |
| 间距 | 0.197" (5.00mm) | 高度 | 28.5 |
| 重量 | 12.345887 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | 锡 |
| 壳体材料 | Polyamide | 总长度 | 52 |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 20 |
| 位数 | 20 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MDSTB | 行业别名 | MDSTB 2, 5/10-G1 |
| 层数 | 2 | 每层位数 | 10 |
文档与媒体
相关型号
1765852
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/10-ST Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTBP 2,5/10-ST Connector;PCB;12A;320V;10-Pos.;ScrewConn.;Green
1759004
Phoenix Contact
プラグ着脱可能ターミナルブロック MSTB 2 5/10-STZ Conn Terminal Block F 10 POS 5mm Screw RA Cable Mount 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-STZ Pluggable Terminal Blocks MSTB 2 5/10-STZ MSTB2,5/10-STZ
1754601
Phoenix Contact
Pluggable Terminal Blocks 5.00 10P PLUG 180DEG Conn Terminal Block F 10 POS 5mm Screw RA 12A TERM BLOCK PLUG 10POS STR 5MM Printed-circuit board connector MSTB 2,5/10-ST Conn;TermBlk;Plug;Screw;10;5mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON MSTB 系列 5mm 节距 10 路 母 绿色 直 插头, 插入式, 螺钉端接

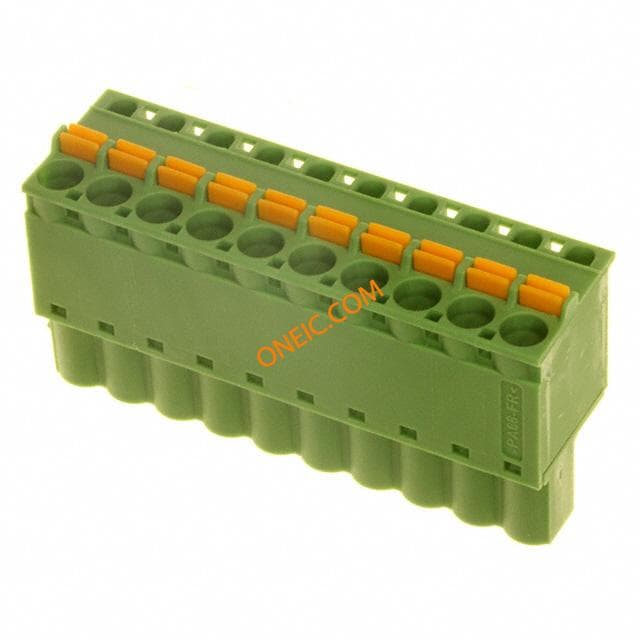

1910432
