点击放大查看

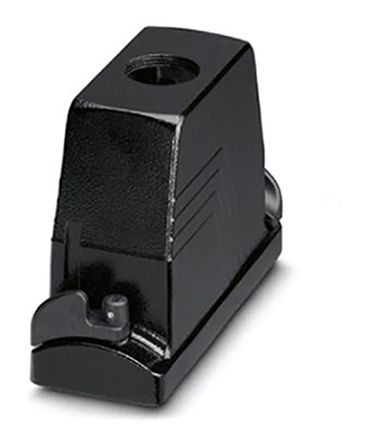

1604528
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-B24-TMB-100/ 01STM32G-EUA Locking, Height 100 Mm, With 1X M32 Thread, Straight Cable Outlet SLEEVE HSNG B24 W/BAYONET LOCK Heavy Duty Power Connectors HC-B24-TMB-100/ 01STM32G-EUA HC-B24-TMB-100/O1STM32G-EUA Connector Housing |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B24 | 重量 | 1.039 lbs |
| 包装方式 | Bulk | 螺纹尺寸 | M32 |
| 外壳颜色 | Black | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 5.984" L x 2.244" W x 3.940" H (151.99mm x 57.00mm x 100.00mm) | ||
产品信息
| 样式 | Top Entry | 系列 | Heavycon Advance |
| 产品特性 | Salt Water Resistant | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Housings | 锁定位置 | Bayonet Lock on Hood |
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 200°C |
