1648296
| 制造商 | Phoenix Contact GmbH & Co. KG |

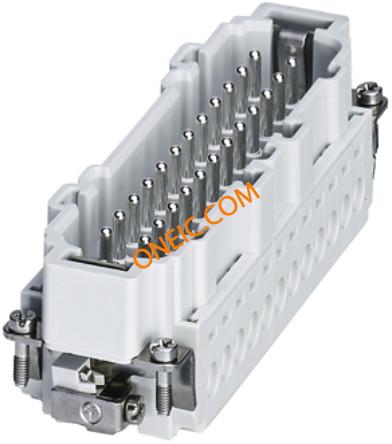

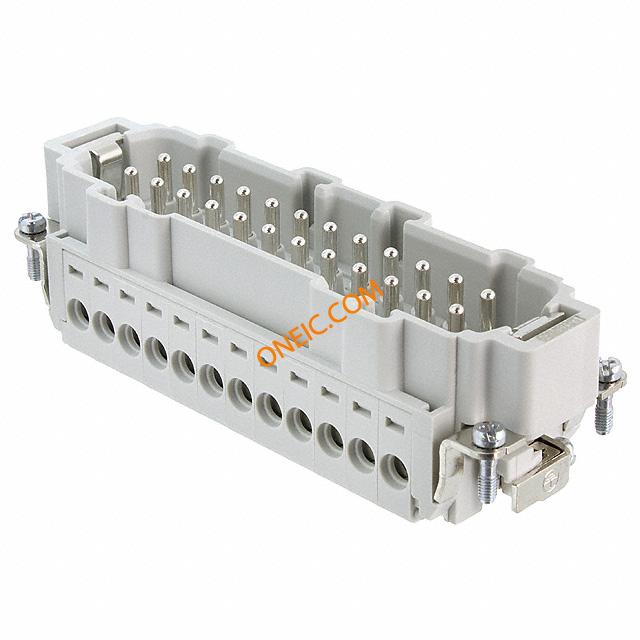

| 描述 | ヘビーデューティパワーコネクタ Female B24 24P Screw Conn Rectangular F 24 POS Screw ST Panel Mount HEAVYCON MALE INSERT 24POS Connector Male Insert B24 24P Screw Heavy Duty Power Connectors Female B24 24P Screw HC-B24-I-UT-M Phoenix Contact B24 系列 24针 插头 电源连接器 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 13A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B24 | 深度 | 32 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Straight |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 111 |
| 端接样式 | Screw | 第一触头极性 | F |
| 触点数 | 24 | 位数 | 24 |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Male |
| 系列 | B24 | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | Insert |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1645370
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32S HEAVYCON Sleeve Housing B24, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32S HC-B24-TFL-76/O1STM32S
1674273
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1PG29S Sleeve Housing, For Single Locking Latch, Height 76mm, Without Screw Connection, 1X PG29, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1PG29S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1PG29S Sleeve housing, for single locking latch, height 76 mm, without screw connection, 1x Pg29, lateral cable entry HC-B24-TFL-76/O1PG29S
1772078
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-KML-79/ M1PG21 Connector Accessories Coupling Housing Aluminum Gray HEAVYCON COUPLING HOUSING Housing for heavy-duty plug connectors HC-B 24-KML-79/M1PG21 Heavy Duty Power Connectors HC-B 24-KML-79/ M1PG21 HC-B24-KML-79/M1PG21
1645752
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 24-SML-84/ O1M32 HEAVYCON Box Mounting Base B24, With Single Locking Latch BOX MOUNT BASE B24 SNGL LATCH Housing for heavy-duty plug connectors HC-B 24-SML-84/O1M32 Heavy Duty Power Connectors HC-B 24-SML-84/ O1M32 HC-B24-SML-84/O1M32
1771969
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-SMQ-67/M1PG21 Box Mounting Base, With Double Locking Latch, Height 67mm, With Screw Connection, 1X PG21 BOX MOUNT BASE DBL LOCKING LATCH Housing for heavy-duty plug connectors HC-B 24-SMQ-67/M1PG21 Heavy Duty Power Connectors HC-B24-SMQ-67/M1PG21 Boxmountingbase,withdoublelockinglatch,height67mm
1604860
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B24-TMQ-76/O1M32G Misc Products SLEEVE HSNG B24 W/DOUBLE LOCK Heavy Duty Power Connectors HC-B24-TMQ-76/O1M32G HC-B24-TMQ-76/O1M32G
1648306
Phoenix Contact

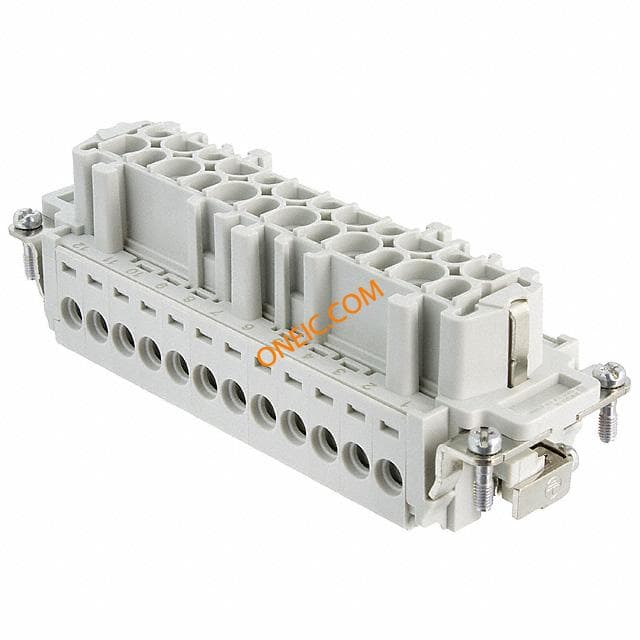

Heavy Duty Power Connectors Female B24 24P Screw Conn Rectangular F 24 POS Screw ST Panel Mount HEAVYCON FML INSERT 24POS Connector Female Insert B24 24P Screw HC-B24-I-UT-F Phoenix Contact B24 系列 24针 插座 电源连接器
