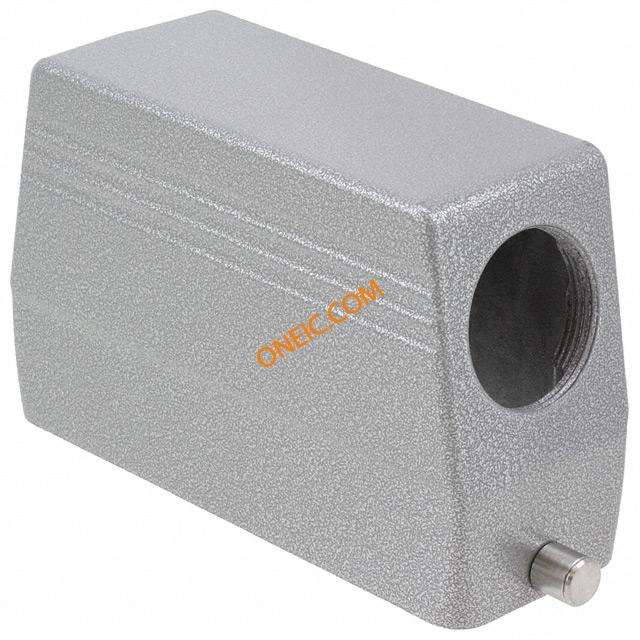

点击放大查看
1645370
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ HC-B 24-TFL-76/ O1STM32S HEAVYCON Sleeve Housing B24, For Single Locking Latch HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 24-TFL-76/O1STM32S Heavy Duty Power Connectors HC-B 24-TFL-76/ O1STM32S HC-B24-TFL-76/O1STM32S |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 尺寸 | B24 | 重量 | 12.182568 oz |
| 包装方式 | Bulk | 螺纹尺寸 | M32 |
| 外壳颜色 | Gray | 连接器类型 | Hood |
| 外壳涂层 | Powder Coated | 壳体材料 | Aluminum, Die Cast |
| 尺寸/外形 | 4.724" L x 1.771" W x 2.992" H (120.00mm x 45.00mm x 76.00mm) | ||
产品信息
| 样式 | Side Entry | 系列 | HC-TFL |
| 产品子类型 | Housings | 锁定位置 | Side Clip on Base Bottom |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
