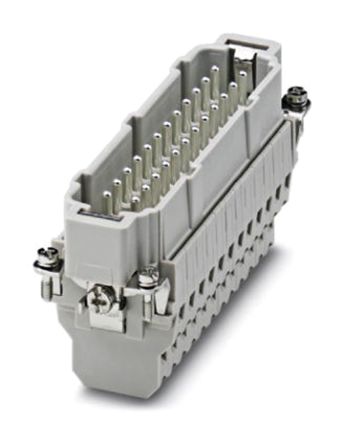

1605255
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Male B24 24P 2 Spring-cage Cont. Conn HEAVYCON Insert M 24 POS ST Panel Mount INSERT MALE 24POS+1GND CLAMP Heavy Duty Power Connectors Male B24 24P 2 Spring-cage Cont. HC-B24-ESTZZ Phoenix Contact B24 系列 24P+E 公插 触点插件 , 额定电流 16A/ 500 V |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 其他名称 | HC-B 24-ESTZZ |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 500V | 最大额定电流 | 16A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B24 | 深度 | 49.3 |
| 高度 | 34 | 重量 | 6 oz |
| 包装方式 | Bulk | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 排数 | 2 | 插入力 | Male |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate |
| 总长度 | 111 | 端接样式 | Tension Clamp |
| 第一触头极性 | M | 触点数 | 24 |
| 位数 | 24+Ground | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | HEAVYCON Insert | 连接器性别 | Male |
| 系列 | B24 | 极性 | 24P+E |
| 产品子类型 | Inserts | 附件类型 | 触点插件 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
