点击放大查看

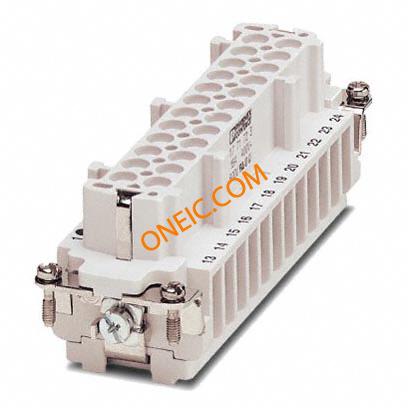

1771723

制造商	Phoenix Contact GmbH & Co. KG
描述	ヘビーデューティパワーコネクタ Female B24 24P Screw FEMALE INSERT B24 SERIES 24POS Contact insert HC-B 24-EBUS Heavy Duty Power Connectors Female B24 24P Screw Conn Terminal Block F 24 POS Crimp ST Panel Mount 16A HEAVYCONfemaleinsert,B24series,24-pos.,screwconnection FEMALEINSERT,B24SERIES,24-POS.
分类	连接器解决方案重载连接器重载连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	商标名	HEAVYCON
子类别	Connector Terminal Blocks	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压

600V

最大额定电流

15A

机械参数

尺寸	B24	重量	5.308731 oz
包装方式	Bulk	连接器类型	Insert
接触镀层	Silver	插入力	Female
触头材料	Copper Alloy	壳体材料	Polyamide (PA), Nylon
端接样式	Screw	触点数	24
位数	24	线规或范围 - AWG	20-14

产品信息

连接器性别	Female	系列	Heavycon
产品子类型	Inserts	行业别名	HC-B 24-EBUS
适用产品/相关产品	1660122

环境参数

工作温度

-40°C ~ 125°C

文档与媒体

PDF 文档

1771723
