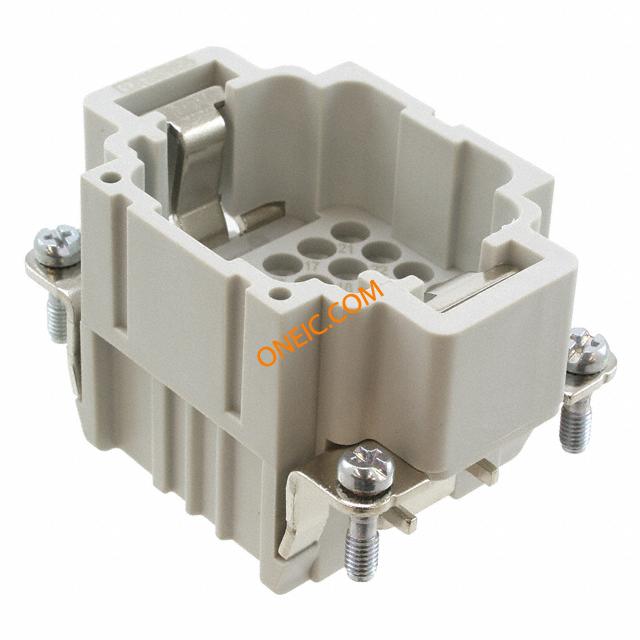

点击放大查看
1584033
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Male DD24 24P Crimp Conn Heavy-Duty Rectangular M 24 POS Crimp ST Panel Mount CONN MALE INSERT 24POS HEAVYCON HEAVYCONMALEINSERTDD24SERIES24POS. |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B6 | 深度 | 32.5 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 排数 | 6 |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 50.5 |
| 端接样式 | Crimp | 第一触头极性 | M |
| 触点数 | 24 | 位数 | 24 |
| 线规或范围 - AWG | 26-14 | ||
产品信息
| 类型 | Heavy-Duty Rectangular | 连接器性别 | Male |
| 系列 | Heavycon | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
