点击放大查看

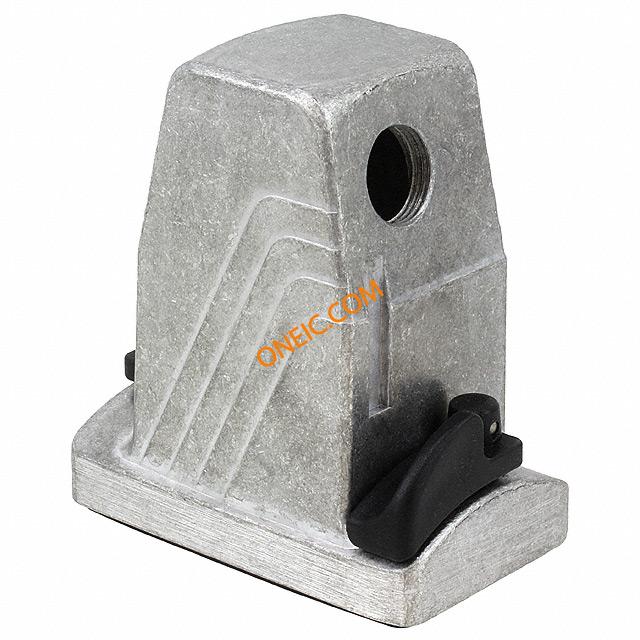

1460362
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors HC-B 6-TMB-100/ O1STM20S-EEE HC-B 6-TMB-100/O1STM20S-EEE HEAVYCON SLEEVE HOUSING HC-B6-TMB-100/O1STM20S-EEE |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | B6 | 包装方式 | Bulk |
| 螺纹尺寸 | M20 | 连接器类型 | Hood |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 3.622" L x 2.244" W x 3.940" H (92.00mm x 57.00mm x 100.00mm) |
| 端接样式 | Screw | ||
产品信息
| 样式 | Side Entry | 系列 | B6 |
| 产品特性 | Salt Water Resistant | 产品子类型 | Housings |
| 锁定位置 | Bayonet Lock on Hood | 附件类型 | Sleeve Housing |
环境参数
| 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
