点击放大查看

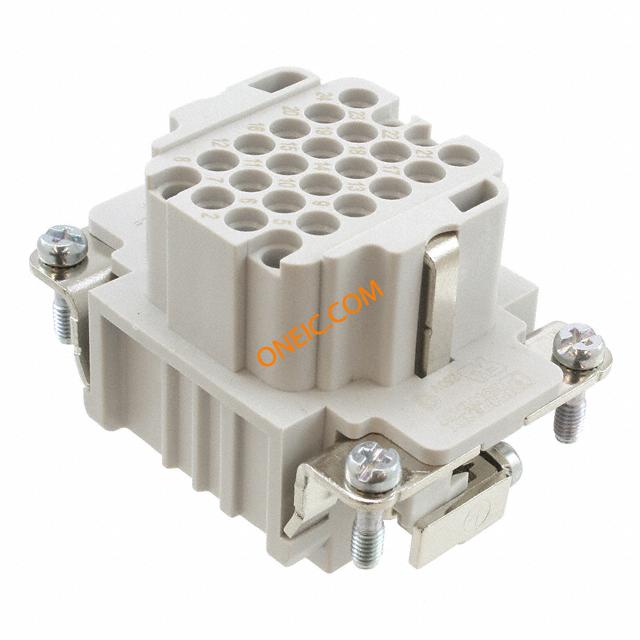

1584046
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Female DD24 24P Crimp Conn Heavy-Duty Rectangular F 24 POS Crimp ST Panel Mount CONN FMALE INSERT 24POS HEAVYCON Heavy Duty Power Connectors Female DD24 24P Crimp HC-DD24-I-CT-F |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B6 | 深度 | 34.5 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 50.5 | 端接样式 | Crimp |
| 第一触头极性 | F | 触点数 | 24 |
| 位数 | 24 | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | Heavy-Duty Rectangular | 连接器性别 | Female |
| 系列 | Heavycon | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1663446
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE
1678156
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B6-SMLD-74/O1PG21 Box Mounting Base, With Single Locking Latch, Height 74 Mm, Without Screw Connection, 1X Pg21, With Protective Covers BOX MOUNTING BASE 74 MM Heavy Duty Power Connectors HC-B6-SMLD-74/O1PG21 HC-B6-SMLD-74/O1PG21 Phoenix Contact HC-B 系列 连接器外壳 , 适用于BB10，DD24，HC-B6
1885004
Phoenix Contact
ヘビーデューティパワーコネクタ Fiber Opt Fem Cont POF, for VC-D Insert Contact PIN/SKT Crimp ST Cable Mount FIBER OPTIC FEMALE CONTACT POF POF female contact CK1,6-ED-BU-POF Heavy Duty Power Connectors Fiber Opt Fem Cont POF, for VC-D Insert CK16-ED-BU-POF

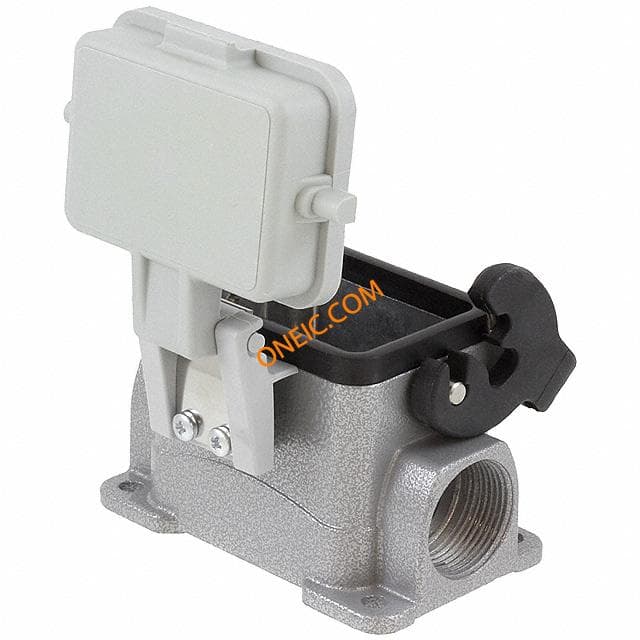

1604728
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SMLD-52/01M25 HEAVYCON Box Mounting Base B6, With Single Locking Latch HEAVYCON MOUNTING BASE B6 Housing for heavy-duty plug connectors HC-B6-SMLD-52/O1M25 HEAVYCON box mounting base B6, with single locking latch and cover. Height 52 mm, with support 1xM25 HC-B6-SMLD-52/O1M25
1674985
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Au Contact SKT Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT FEMALE Crimp contact CK1,6-ED-2,50BU AU Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Au CK16-ED-250BUAU Phoenix Contact HC-M 系列 母座 压接触点 , 额定电流 0.005A/ 5 V, 适用于HC-D、HC-DD、HC-M-12、HC-M-EMC、VC-D
1604191
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TMB-100/01STM 20S-EUA Connector Accessories Sleeve Housing Aluminum Black HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 6-TMB-100/01STM 20S-EUA HC-B6-TMB-100/O1STM20S-EUA Connector Housing
1584033
Phoenix Contact
Heavy Duty Power Connectors Male DD24 24P Crimp Conn Heavy-Duty Rectangular M 24 POS Crimp ST Panel Mount CONN MALE INSERT 24POS HEAVYCON HEAVYCONMALEINSERTDD24SERIES24POS.
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1771176
Phoenix Contact
Heavy Duty Power Connectors HC-B6-SMLD-52/M1PG16 Box Mounting Base, With Single Locking Latch BOX MOUNTING BASE LOCKING LATCH Housing for heavy-duty plug connectors HC-B 6-SMLD-52/M1PG16 HC-B6-SMLD-52/M1PG16 Phoenix Contact HC-B 系列 连接器外壳 , PG16螺纹
1674480
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.5mm2 Au Contact SKT Crimp ST Cable Mount TURNED 1.6 CRIMP CONTACT FEMALE Crimp contact CK1,6-ED-0,50BU AU CK16-ED-050BUAU
1771163
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SML-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, With Screw Connection, 2X Pg16 BOX MOUNTING BASE 52MM Housing for heavy-duty plug connectors HC-B 6-SML-52/M2PG16 HC-B6-SML-52/M2PG16
1604081
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-TMS-100/ 01STM20S-STA Connector Accessories Sleeve Housing Aluminum Gray HEAVYCON SLEEVE HOUSING Housing HC-B6-TMS-100/O1STM20S-STA HEAVYCON ADVANCE standard powder-coated sleeve housing B6, with screw locking, height 100 mm, with 1xM20 thread, lateral cable outlet HEAVYCONPOWDER-COATEDSLEEVEHOUSINGB6

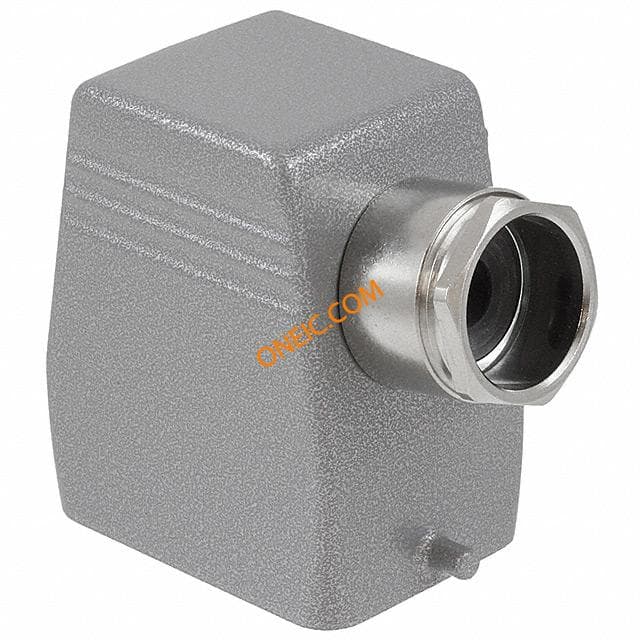

1679634
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TFL-72/ M1PG21S Sleeve Housing, For Single Locking Latch, Height 72mm, With Screw Connection, 1X PG21, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 6-TFL-72/M1PG21S Heavy Duty Power Connectors HC-B 6-TFL-72/ M1PG21S Sleeve housing, for single locking latch, height 72 mm, with screw connection, 1x Pg21, lateral cable entry HC-B6-TFL-72/M1PG21S
1663417
Phoenix Contact
Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 0.75mm Ag Panel Mounting Frame, Without Securing Screws, Round Cutout, One-Part CRIMP CONTACT SOCKET 18AWG Crimp contact CK1,6-ED-0,75BU AG TURNED1.6CRIMPCONTACTFEMALE
1771150
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SML-52/M1PG16 Box Mounting Base, With Single Locking Latch, Height 52mm, With Screw Connection BOX MOUNTING BASE LOCKING LATCH Housing for heavy-duty plug connectors HC-B 6-SML-52/M1PG16 HC-B6-SML-52/M1PG16 Phoenix Contact HC-B 系列

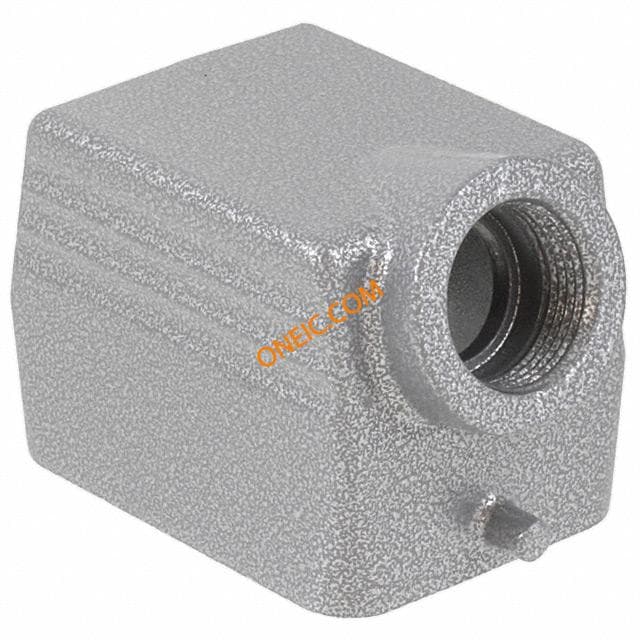

1675311
Phoenix Contact
Heavy Duty Power Connectors HC-B6-TFL-43/ O1PG13,5S Sleeve Housing, For Single Locking Latch, Height 43mm, Without Screw Connection HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 6-TFL-43/O1PG13,5S HC-B6-TFL-43/O1PG135S

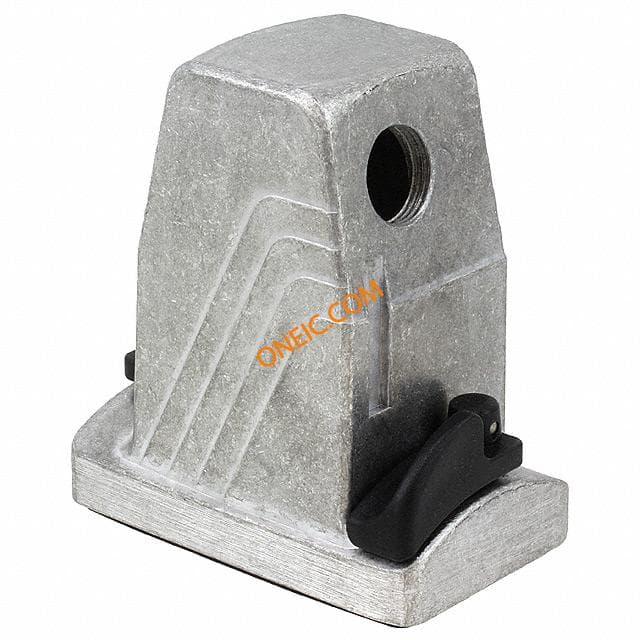

1460362
