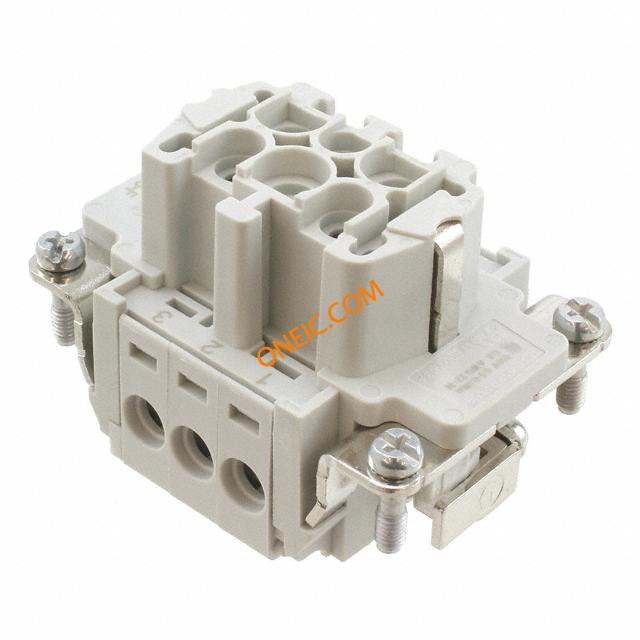

点击放大查看
1648128
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Female B6 6P Screw Conn Rectangular F 6 POS Screw ST Panel Mount HEAVYCON FML INSERT 6POS Connector Female Insert B6 6P Screw Heavy Duty Power Connectors Female B6 6P Screw HC-B6-I-UT-F Phoenix Contact B6 系列 6针 插座 电源连接器外壳 |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 13A |
| 最小输入电压 | 500V | ||
机械参数
| 尺寸 | B6 | 深度 | 34.6 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Screw | 安装类型 | Straight |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide | 总长度 | 50.5 |
| 端接样式 | Screw | 第一触头极性 | F |
| 触点数 | 6 | 位数 | 6 |
| 线规或范围 - AWG | 20-14 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | Female |
| 系列 | B6 | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Inserts | 附件类型 | Insert |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1685330
Phoenix Contact
Cable Mounting & Accessories HC-B-ZS Strain Relief Clamps Contact Inserts Of Series B-, BB-, D 40, D 64, DD And HV, Lateral Cable Exit STRAIN RELIEF CLAMP Strain relief HC-B-ZS HC-B-ZS
1678156
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B6-SMLD-74/O1PG21 Box Mounting Base, With Single Locking Latch, Height 74 Mm, Without Screw Connection, 1X Pg21, With Protective Covers BOX MOUNTING BASE 74 MM Heavy Duty Power Connectors HC-B6-SMLD-74/O1PG21 HC-B6-SMLD-74/O1PG21 Phoenix Contact HC-B 系列 连接器外壳 , 适用于BB10，DD24，HC-B6
1771147
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-AMLD Heavycon Panel Mounting Base B6, With Single Locking Latch, Height HEAVYCON PANEL MOUNTING BASE Heavy Duty Power Connectors HC-B 6-AMLD HEAVYCONpanelmountingbaseB6,withsinglelockinglatch,27mmwithlatch
1678208
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TFL-72/ O1PG21S Sleeve Housing, For Single Locking Latch, Height 72mm, Without Screw Connection, 1X PG21, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 6-TFL-72/O1PG21S Heavy Duty Power Connectors HC-B 6-TFL-72/ O1PG21S HC-B6-TFL-72/O1PG21S

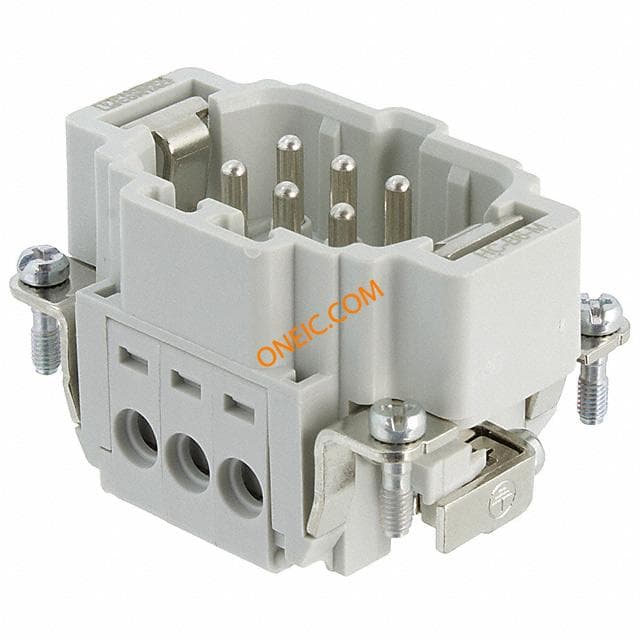

1648115
Phoenix Contact
Heavy Duty Power Connectors Male B6 6P Screw Conn Rectangular M 6 POS Screw ST Panel Mount HEAVYCON ML INSERT 6POS Connector Male Insert B6 6P Screw HC-B6-I-UT-M Phoenix Contact B6 系列 6针 插头 电源连接器外壳
1604728
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SMLD-52/01M25 HEAVYCON Box Mounting Base B6, With Single Locking Latch HEAVYCON MOUNTING BASE B6 Housing for heavy-duty plug connectors HC-B6-SMLD-52/O1M25 HEAVYCON box mounting base B6, with single locking latch and cover. Height 52 mm, with support 1xM25 HC-B6-SMLD-52/O1M25
1604191
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TMB-100/01STM 20S-EUA Connector Accessories Sleeve Housing Aluminum Black HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 6-TMB-100/01STM 20S-EUA HC-B6-TMB-100/O1STM20S-EUA Connector Housing
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1771176
Phoenix Contact
Heavy Duty Power Connectors HC-B6-SMLD-52/M1PG16 Box Mounting Base, With Single Locking Latch BOX MOUNTING BASE LOCKING LATCH Housing for heavy-duty plug connectors HC-B 6-SMLD-52/M1PG16 HC-B6-SMLD-52/M1PG16 Phoenix Contact HC-B 系列 连接器外壳 , PG16螺纹
1604175
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TMB-100/01STM 20G-STA Connector Accessories Sleeve Housing Straight Aluminum Die Cast Powder Finish Gray HEAVYCON SLEEVE HOUSING Housing HC-B6-TMB-100/O1STM20G-STA Heavy Duty Power Connectors HC-B 6-TMB-100/01STM 20G-STA HC-B6-TMB-100/O1STM20G-STA
1771163
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-SML-52/ M2PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, With Screw Connection, 2X Pg16 BOX MOUNTING BASE 52MM Housing for heavy-duty plug connectors HC-B 6-SML-52/M2PG16 HC-B6-SML-52/M2PG16
1604081
Phoenix Contact
Heavy Duty Power Connectors HC-B 6-TMS-100/ 01STM20S-STA Connector Accessories Sleeve Housing Aluminum Gray HEAVYCON SLEEVE HOUSING Housing HC-B6-TMS-100/O1STM20S-STA HEAVYCON ADVANCE standard powder-coated sleeve housing B6, with screw locking, height 100 mm, with 1xM20 thread, lateral cable outlet HEAVYCONPOWDER-COATEDSLEEVEHOUSINGB6

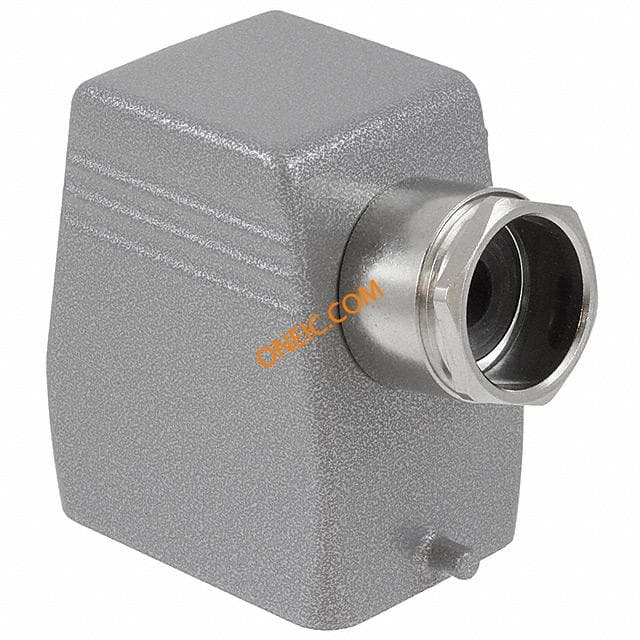

1679634
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 6-TFL-72/ M1PG21S Sleeve Housing, For Single Locking Latch, Height 72mm, With Screw Connection, 1X PG21, Lateral Cable Entry HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 6-TFL-72/M1PG21S Heavy Duty Power Connectors HC-B 6-TFL-72/ M1PG21S Sleeve housing, for single locking latch, height 72 mm, with screw connection, 1x Pg21, lateral cable entry HC-B6-TFL-72/M1PG21S

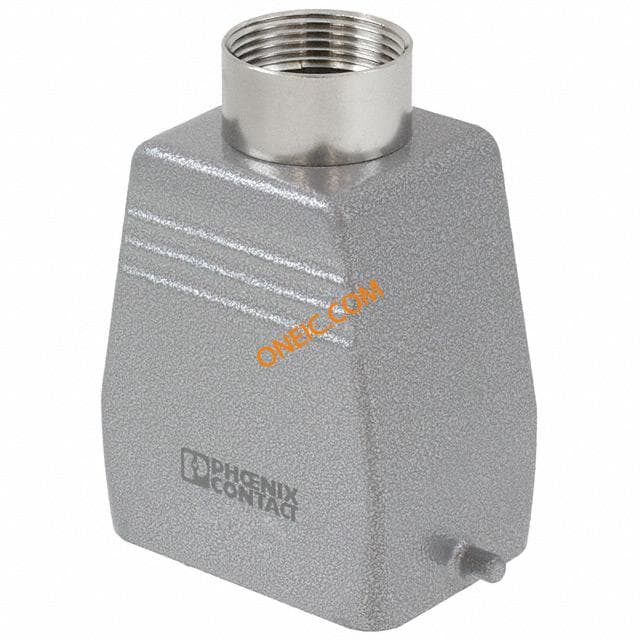

1678198
