点击放大查看

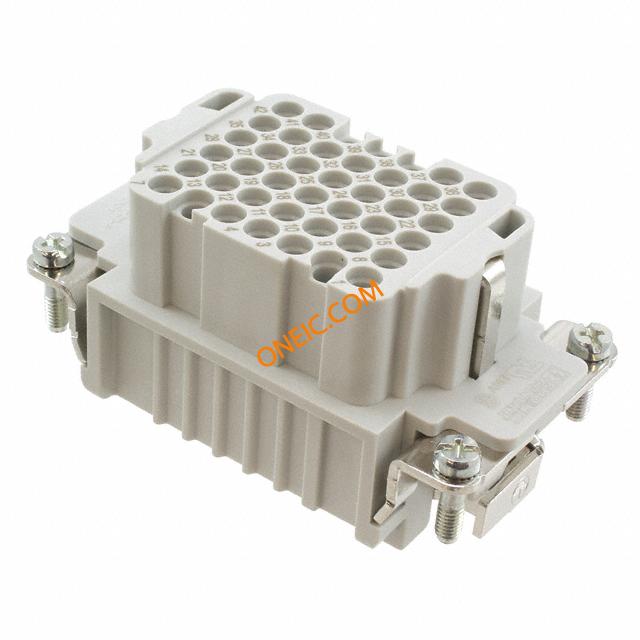

1584062
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | ヘビーデューティパワーコネクタ Female DD42 42P Crimp Conn Rectangular F 42 POS Crimp ST Panel Mount HEAVYCON FEMALE INSERT 42POS Heavy Duty Power Connectors Female DD42 42P Crimp HC-DD42-I-CT-F |
| 分类 |
商业参数
| 商标名 | HEAVYCON | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小输入电压 | 250V | ||
机械参数
| 尺寸 | B10 | 深度 | 34.5 |
| 高度 | 34 | 包装方式 | Bulk |
| 端接方式 | Crimp | 触头类型 | CK 1.6-ED |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 插入力 | Female |
| 触头材料 | Copper Alloy | 壳体材料 | Polyamide |
| 总长度 | 64 | 端接样式 | Crimp |
| 第一触头极性 | F | 触点数 | 42 |
| 位数 | 42+Ground | 线规或范围 - AWG | 26-14 |
产品信息
| 类型 | Rectangular | 连接器性别 | Female |
| 系列 | DD42 | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
1663446
Phoenix Contact
ヘビーデューティパワーコネクタ Turn 1.6 Crimp Fem Diam. 2.5mm Ag Turned 1.6 Crimp Contact, Individual Female Contact, Core Diameter 2.5mm Square, Silver-Plated CRIMP CONTACT SOCKET 14AWG Crimp contact CK1,6-ED-2,50BU AG Heavy Duty Power Connectors Turn 1.6 Crimp Fem Diam. 2.5mm Ag TURNED1.6CRIMPCONTACTFEMALE
1604781
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TMQ-52/01M25S HEAVYCON Sleeve Housing B10, With Double Locking Latch, Height 52 HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TMQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TMQ-52/01M25S HEAVYCONsleevehousingB10
1690121
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10TMS-100/ 01STM32G-STA HEAVYCON Advance Standard Powder-Coated Sleeve Housing B10 HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 10TMS-100/ 01STM32G-STA HC-B10TMS-100/01STM32G-STA
1644973
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-TFL-72/ O1STM25S HEAVYCON Sleeve Housing B10, For Single Locking Latch, Height 72mm, Without Support 1X M25, Lateral Conductor Exit HEAVYCON SLEEVE HOUSING Housing for heavy-duty plug connectors HC-B 10-TFL-72/O1STM25S Heavy Duty Power Connectors HC-B 10-TFL-72/ O1STM25S HC-B10-TFL-72/O1STM25S
1460367
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-TMB-100/ O1STM32G-EEE HC-B 10-TMB-100/O1STM32G-EEE HEAVYCON SLEEVE HOUSING Heavy Duty Power Connectors HC-B 10-TMB-100/ O1STM32G-EEE HC-B10-TMB-100/O1STM32G-EEE
1586811
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B 10-SMQ-52/ M1M20 HC-B 10-SMQ-52/M1M20 BOX MNT BASE W/DBL LOCKING LATCH Heavy Duty Power Connectors HC-B 10-SMQ-52/ M1M20 HC-B10-SMQ-52/M1M20
1584059
Phoenix Contact
Heavy Duty Power Connectors Male DD42 42P Crimp Conn Rectangular M 42 POS Crimp ST Panel Mount HEAVYCON MALE INSERT 42POS CRIMP HC-DD42-I-CT-M
1673449
Phoenix Contact
Heavy Duty Power Connectors HC-B 10-SML-52/ O1PG16 Box Mounting Base, With Single Locking Latch, Height 52 Mm, Without Screw Connection, 1X Pg16 BOX MOUNTING BASE SINGLE 52 MM HC-B10-SML-52/O1PG16 Phoenix Contact HC-B 系列 连接器外壳 , 适用于BB18，DD42，HC-B10，K8/24
1584033
Phoenix Contact
Heavy Duty Power Connectors Male DD24 24P Crimp Conn Heavy-Duty Rectangular M 24 POS Crimp ST Panel Mount CONN MALE INSERT 24POS HEAVYCON HEAVYCONMALEINSERTDD24SERIES24POS.
1690150
Phoenix Contact
Heavy Duty Power Connectors HC-B10-TMS-100/ 01STM32S-EUA HEAVYCON Advance For Increased Environmental Requirements, Sleeve Housing B10, With Screw Locking HEAVYCON SLEEVE HOUSING Housing HC-B 10-TMS-100/O1STM32S-EUA HEAVYCON ADVANCE for increased environmental requirements, sleeve housing B10, with screw locking, height 100 mm, with 1xM32 thread, lateral cable ... HEAVYCON ADVANCE for increased environmental requirements, sleeve housing B10, with screw locking, height 100 mm, with 1xM32 thread, lateral cable outlet POWDER-COATEDSLEEVEHOUSINGB11
1676860
Phoenix Contact
Heavy Duty Power Connectors HC-CBU Keying Socket For Coding Up To 16 Plug Connectors KEYING SOCKET FOR CODING 16 PLUG Keying element HC-CBU KEYINGPEGFORCODING16PLUGCONNECTORS
1604772
Phoenix Contact
ヘビーデューティパワーコネクタ HC-B10-TFQ-52/01M25S Heavycon Sleeve Housing B10, For Double Locking Latch, Height 52 Mm, With Support 1X M25, Lateral Conductor Exit SLEEVE HSNG B10 FOR DOUBLE LOCK Housing for heavy-duty plug connectors HC-B 10-TFQ-52/O1M25S Heavy Duty Power Connectors HC-B10-TFQ-52/01M25S HC-B10-TFQ-52/O1M25S

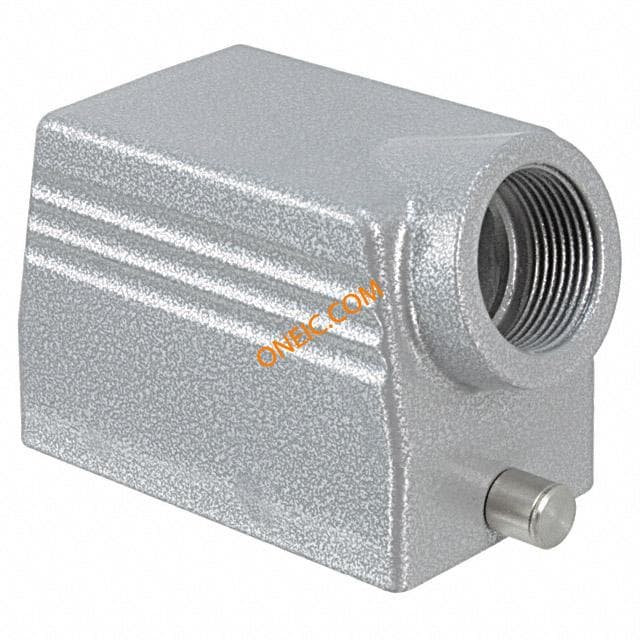

1604761
