点击放大查看

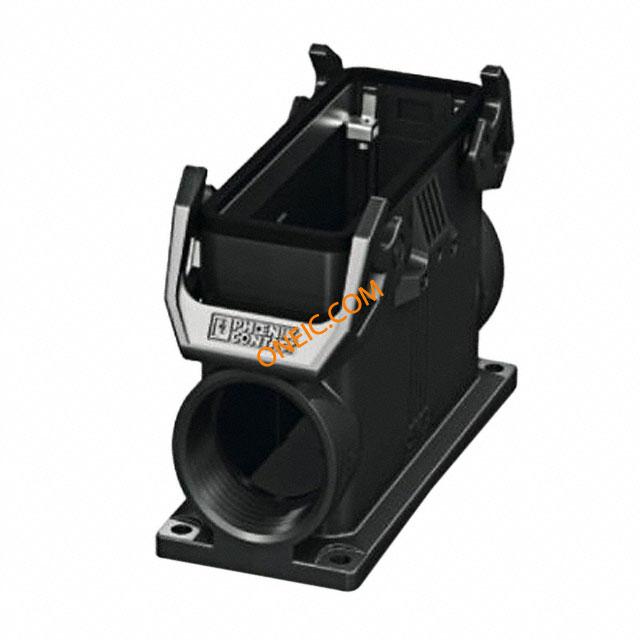

1407665
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Heavy Duty Power Connectors Surf Mnt Housing B24 Double Latch, 2xM40 CONN BASE SIDE ENTRY SZB24 M40 Phoenix Contact 外壳 |
| 分类 |
商业参数
| 零件号别名 | HC-EVO-B24-SHWD-2SSM40-PLRBK, HCEVOB24SHWD2SSM40PLRBK | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | B24 | 包装方式 | Bulk |
| 螺纹尺寸 | M40 | 外壳颜色 | Black |
| 连接器类型 | Base - Box Mount | 壳体材料 | Polyamide (PA) |
| 尺寸/外形 | B24 | 端接样式 | Screw |
| 触点数 | 2 | ||
产品信息
| 样式 | Side Entry | 系列 | HEAVYCON-EVO |
| 产品特性 | Feed Through | CAD图纸 | 3D CAD 模型 |
| 产品子类型 | Housings | 锁定位置 | Locking Clip on Base Bottom |
| 附件类型 | Box Mounting Base | ||
环境参数
| 防护等级 | IP66/68/69K - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40°C ~ 125°C |
