点击放大查看

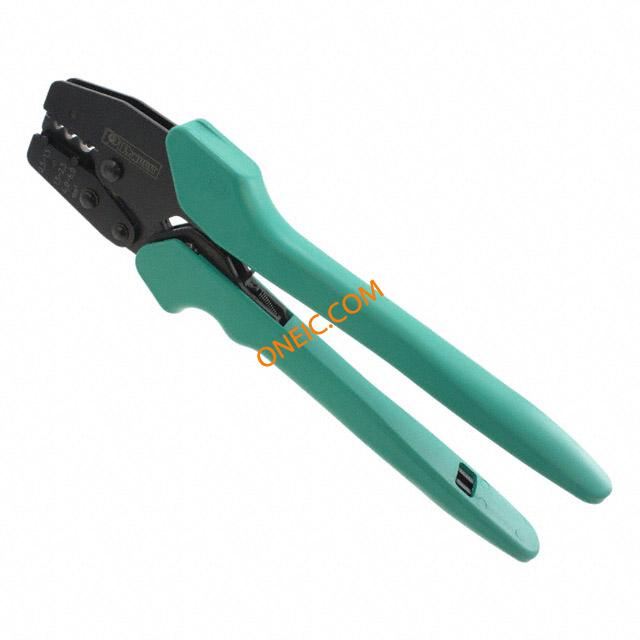

CT-1570
| 制造商 | Panduit Corp. |
| 描述 | Terminals, Ferrules, And Crimping Tools Crimpers 22-10 AWG CRIMP TL TOOL CRIMP NON INS 10-22AWG CONTOUR CRIMPING TOOL NON-INS TERMINALINALS AND SPLICES CRIMP TOOL, NON-INSULATED TERMINALS & DISCONNECTS CONTOURCRIMPINGTOOLNON-INSTERMINALINALSANDSPLICES Contour Crimp Crimping Tool, controlled cycle, manual release lever, cushioned grips |
| 分类 |
商业参数
| 产品 | Crimpers | 交货时间 | 14 Days |
| 子类别 | Assembly Tools | 产品类别 | Crimpers |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 欧盟RoHS | RoHS Not Applicable |
| 海关税号 | 85369010 | ||
机械参数
| 颜色 | Green | 重量 | 1.270 lbs |
| 包装方式 | Bulk | 导线线规 | 22-10AWG |
| 基体材料 | :Polypropylene Handles | 驱动力 | Manual |
| 适用端子尺寸 | 22-10 AWG | 配接方向 | :Non-Insulated Terminals |
| 筒体内径 | :22AWG to 10AWG, 0.5mm to 6mm Square | ||
产品信息
| 类型 | Crimp Tool | 产品特性 | Side Entry |
| 工具类型 | Hand Crimper | 应用细节 | 22-10AWG |
| 适用产品/相关产品 | Terminals, splices and disconnects | ||
