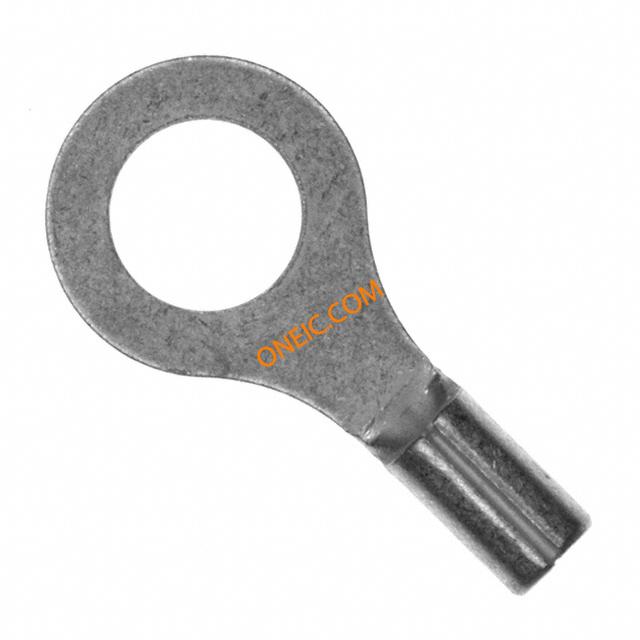

P14-14R-C
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 14-18AWG 23.1mm 11.7mm Tin Terminals Ring Term 18-14 Awg non insulated TERM RING NON INS 16-14AWG TERMINAL;RING NON-INSUL.; 16-14 AWG; 1/4IN STUD TERMINAL,RINGNON-INSUL.;16-14AWG;1/4INSTUD Ring Terminal, 18-14 AWG, 1/4" stud size, non-insulated, pack of 100 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 重量 | 4.160000 oz | 包装方式 | Bulk |
| 厚度 | 0.030" (0.76mm) | 绝缘类型 | Non-Insulated |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 6.35 mm |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 0.910" (23.11mm) |
| 外缘宽度 | 0.460" (11.68mm) | ||
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Brazed Seam, Serrated Termination |
| UNSPSC代码 | 31163100 | ||
