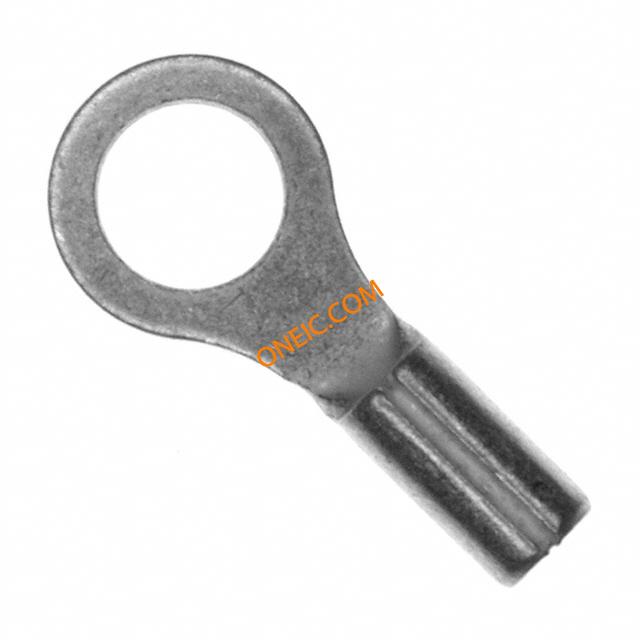

P18-10R-C

制造商	Panduit Corp.
描述	Ring Tongue Terminal 16-22AWG 18mm 7.9mm Tin Terminals NON-INSL.RING 22-18 #10 TERM RING NON INS 22-18 AWG #10 TERMINAL;RING NON-INSUL.; 22-18 AWG; #10 STUD TERMINAL, RING TONGUE, #10, CRIMP TERMINAL,RINGNON-INSUL.;22-18AWG;#10STUD Ring Terminal, Non-Insulated, 22 - 16 AWG, #10 Stud Size, Pack of 100
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	交货时间	14 Days
子类别	Connector Terminals	产品类别	Terminals
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

RoHS Compliant

海关税号

00000000

机械参数

宽度	0.31 in	长度	18 mm
重量	2.720000 oz	材料（通用）	Copper
包装方式	Bulk	厚度	0.030" (0.76mm)
绝缘类型	Not Insulated	螺钉尺寸	10
导线线规	16-22 AWG	端接方式	Crimp
安装类型	Wire	螺柱/焊片尺寸	4.82 mm
端子类型	Circular	行程角度	Straight
连接器类型	:Ring Tongue	接触镀层	Tin
总宽度	0.31"	触头材料	Copper
绝缘颜色	:Uninsulated	总长度	0.710" (18.03mm)
包装数量	100	主要材料	Ring
端接样式	Crimp	外缘宽度	0.310" (7.87mm)
线规或范围 - AWG	:22AWG

产品信息

类型	Ring Tongue Terminal	连接器性别	Female
系列	:P-R	产品特性	Brazed Seam, Serrated Termination
制造商全称	P18Series

文档与媒体

PDF 文档

076644.pdf

PDF 文档

A41263.pdf

PDF 文档

P18-xR Drawing
