8-34112-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Tin Loose Piece Terminals N/I-RING 22-16 #10 C/B Ring and Spade Tongue Terminals CONN RING 16-22 AWG #10 SOLIS Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP SEE512-259434112 SOLIS R 22-16COMM 22-18MIL 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 00000000 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | 0.059 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.79 [0.031] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 16-22 AWG | 本体表面处理 | SOLISTRAND |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 线束直径 | 1.55 mm | 连接器样式 | Straight |
| 总宽度 | 0.312" | 触头材料 | Copper |
| 柄部直径 | 0.197in. | 绝缘颜色 | :Uninsulated |
| 总长度 | 0.621" (15.77mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 绝缘高度 | Non-Insulation Support | 材料厚度 | 0.031in. |
| 外缘宽度 | 0.312" (7.92mm) | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 341 | 产品特性 | Brazed Seam, Serrated Termination |
| 制造商全称 | AMP | ||
文档与媒体
相关型号
34112
TE Connectivity AMP Connectors
Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Tin Loose Piece Terminals #10 RING Ring and Spade Tongue Terminals CONN RING 16-22 AWG #10 SOLIS Ring Tongue Terminal 16-22AWG 15.77mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING, #10 STUD, CRIMP, 22-16AWG TERMINAL, RING, 22-16AWG Terminal;RING-048;Copper;22-16AWG;10;SOLISTRAND;0.197in.;Tin; SOLIS R 22-16COMM 22-18MIL 10
58546-2
te connectivity / amp

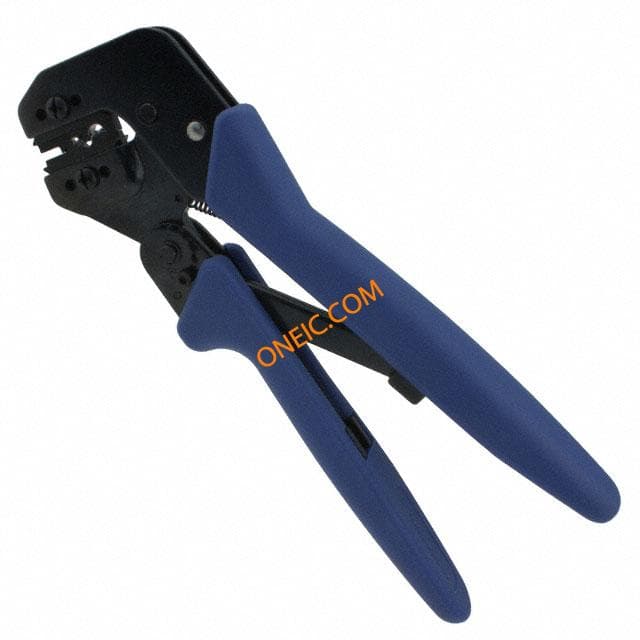

Assembly Tools, PRO Crimper Hand Tool Assembly Crimpers SOLIS 22-10AWG W/DIE AS (-1) TOOL HAND SOLIS 10-22AWG W/DIE Crimper;Ratchet;22-10AWG;UniversalMATE-N-LOK;58530-2Die;PRO-CRIMPERIII
