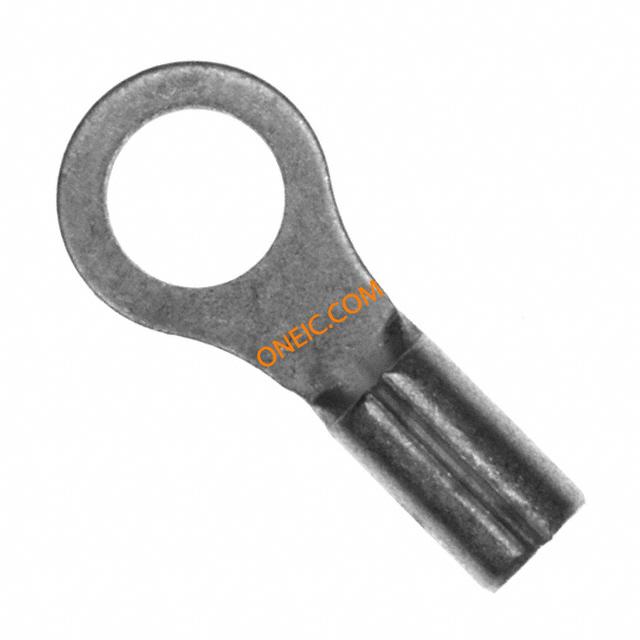

P14-10R-C
| 制造商 | Panduit Corp. |
| 描述 | Ring Tongue Terminal 14-18AWG 18mm 7.9mm Tin Terminals RING 16-14AWG #10 TERM RING NON INS 16-14AWG TERMINAL;RING NON-INSUL; 16-14 AWG; #10 STUD Ring Tongue Terminal 14-18AWG 18mm 7.9mm Tin Product Highlights: Ring tongue design assures a secure connection in high vibration applications Internal barrel serrations assure good wire contact and maximum tensile strength Brazed seam protects terminal barrel from splitting during the crimp process Barrel of terminal internally beveled to provide quick and easy wire insertion UL and CSA rated up to 2000 V per UL 486 Maximum recommended operating temperature 302°F (150°C)‡UL and CSA approved tooling/product combinations.Note: Wire sizes #26 – #22 AWG, are not UL Listed or CSA Certified. TERMINAL, RING TONGUE, #10, CRIMP TERMINAL,RINGNON-INSUL;16-14AWG;#10STUD Ring Terminal, non-Insulated, 18 - 14 AWG, #10 Stud Size, Pack of 100 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 长度 | 0.71 in | 重量 | 3.040000 oz |
| 包装方式 | Bulk | 厚度 | 0.030" (0.76mm) |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 总宽度 | 0.31" | 触头材料 | Copper |
| 绝缘颜色 | :Uninsulated | 总长度 | 0.710" (18.03mm) |
| 包装数量 | 100 | 主要材料 | Ring |
| 端接样式 | Crimp | 外缘宽度 | 0.310" (7.87mm) |
| 线规或范围 - AWG | :16AWG | ||
产品信息
| 类型 | Ring Tongue Terminal | 系列 | P14 |
| 产品特性 | Brazed Seam, Serrated Termination | 制造商全称 | P14Series |
