323087
| 制造商 | TE Connectivity Ltd. |

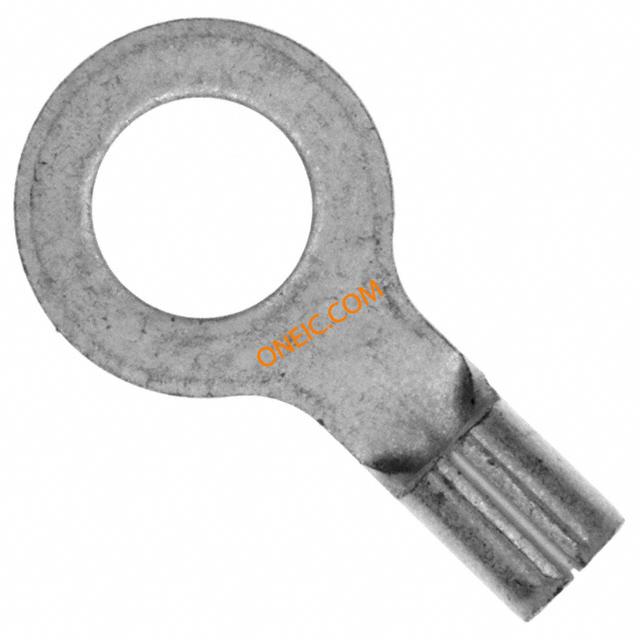

| 描述 | Ring Tongue Terminal 16-22AWG 16.59mm 8.74mm Tin Loose Piece Terminals N/I-RING 22-16 #10 C/B Ring and Spade Tongue Terminals CONN RING 16-22 AWG #10 SOLIS Ring Tongue Terminal 16-22AWG 16.59mm 8.74mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SOLIS R 22-16 COMM 22-18MIL 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 颜色 | Not Required | 深度 | 8.74 mm |
| 形状 | RING-048 | 表面处理 | Tin |
| 重量 | .689 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.79 [0.031] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 10 |
| 导线线规 | 16-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 端子样式 | Straight | 线束直径 | 1.55 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 0.653" (16.59mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 材料厚度 | .79 mm [ .031 in ] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 外缘宽度 | 0.344" (8.74mm) |
| 筒体内径 | 1.55 mm [ .061 in ] | 螺纹/螺钉/孔尺寸 | 5 mm [ .197 in ] |
| 供应商器件封装 | SOLISTRAND | 接触镀层厚度 | 2.54 µm [ 100 µin ] |
| 线规或范围 - AWG | 509 â 3,260 | 线规或范围 - mm² | 0.30-1.40² [22-16] |
| 非扩张内径 | 1.55 mm [ .061 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 323 | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 温度额定值 | 170 [338] | 工作温度 | 170 C |
文档与媒体
相关型号
58546-2
te connectivity / amp

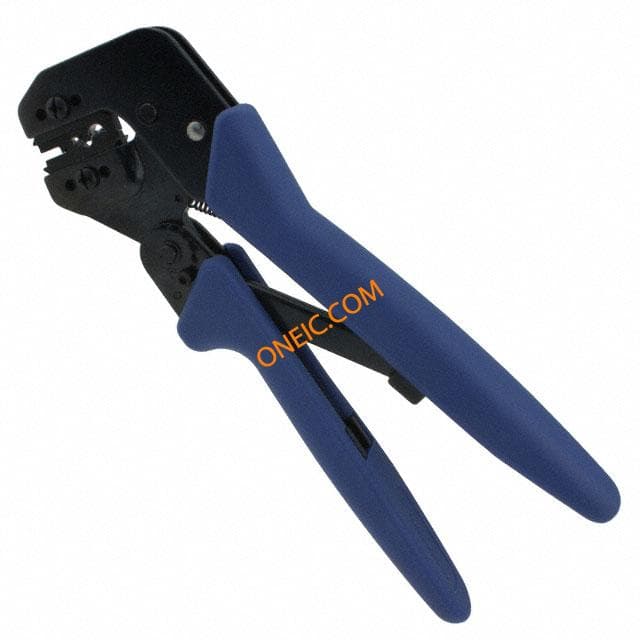

Assembly Tools, PRO Crimper Hand Tool Assembly Crimpers SOLIS 22-10AWG W/DIE AS (-1) TOOL HAND SOLIS 10-22AWG W/DIE Crimper;Ratchet;22-10AWG;UniversalMATE-N-LOK;58530-2Die;PRO-CRIMPERIII
