点击放大查看

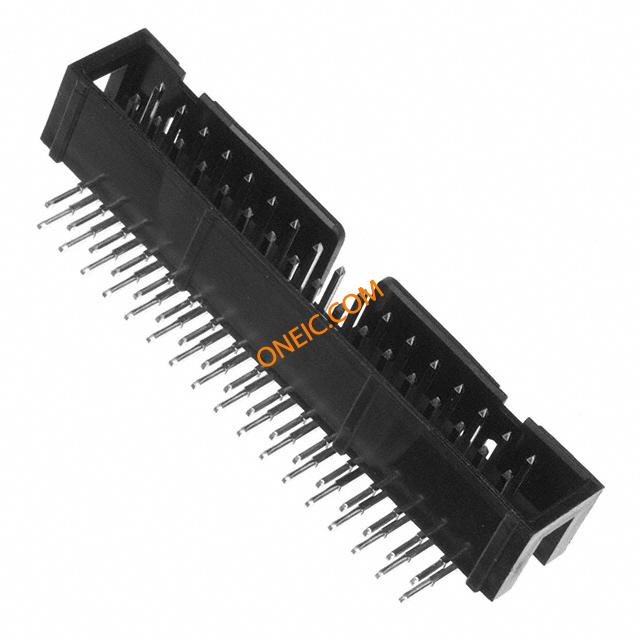

XG4C-3434
| 制造商 | |
| 描述 | Headers & Wire Housings MIL BoxType Plug 34P RightAngle 1Polarize Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole CONN PLUG 34POS 3A RT ANGL DIP 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1756250 427500 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 60 | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 300 V | 接触电阻 | 20 |
| 最大额定电流 | 3 A | 最小输入电压 | 300VAC |
机械参数
| 颜色 | Black | 深度 | 12.2 |
| 间距 | 0.100" (2.54mm) | 高度 | 8.5 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.100" (2.54mm) |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 50.5 |
| 端接样式 | Through Hole | 触点数 | 34 |
| 位数 | 34 | 接触镀层厚度 | 5.9µin (0.15µm) |
| 每排/每行位置数 | All | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | PL |
| 系列 | XG4 | 产品子类型 | Headers |
| 输出配置 | Through Hole, Right Angle | 加载位置数 | All |
