点击放大查看

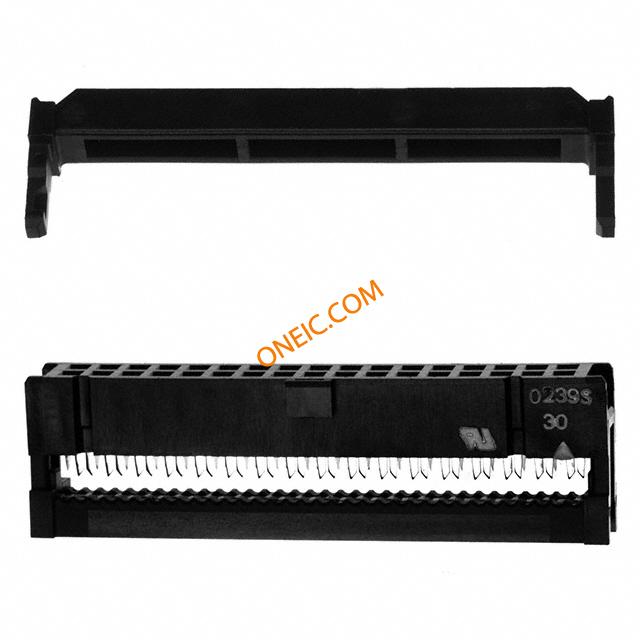

XG4M-3430-T
| 制造商 | |
| 描述 | Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount CONN SOCKET 34POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 34Pin 1Polar |
| 分类 |
商业参数
| 交货时间 | 89 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 1748902 427545 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 250 V | 接触电阻 | 20 |
| 最大额定电流 | 1 A | 最小输入电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 16.1 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 47.7 |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 34 |
| 位数 | 34 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | XG4 | 产品特性 | Feed Through; Polarizing Key, Strain Relief |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
XG8W-3431
Omron Electronics
Headers & Wire Housings Plug Straight Term 34Contact AuPlating PLUG 34POS DOUBLE ROW STRAIGHT

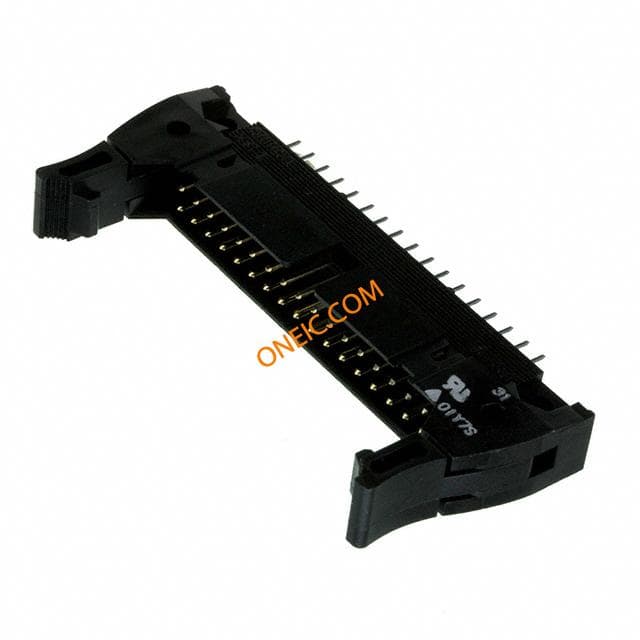

XG4A-3431
