点击放大查看

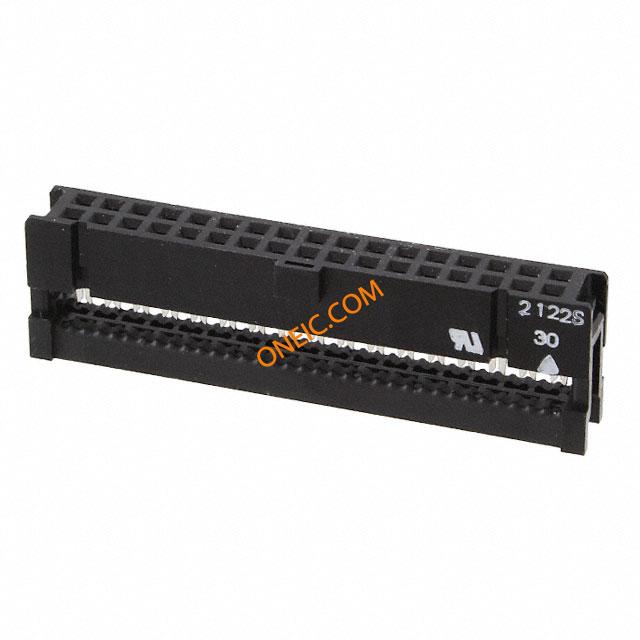

XG4M-3430
| 制造商 | |
| 描述 | ヘッダ & ワイヤハウジング OpenCoverSocket 34P NoStrainRelief 1Polr CONN SOCKET 34POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 34P NoStrainRelief 1Polr Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件 |
| 分类 |
商业参数
| 交货时间 | 96 Days | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 385292 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 60 | 工厂包装数量 | 60 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 1 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 34 |
| 位数 | 34 | 接触镀层厚度 | 5.9µin (0.15µm) |
产品信息
| 类型 | Receptacle | 系列 | XG4 |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 行业别名 | XG4M-3430 | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
