点击放大查看

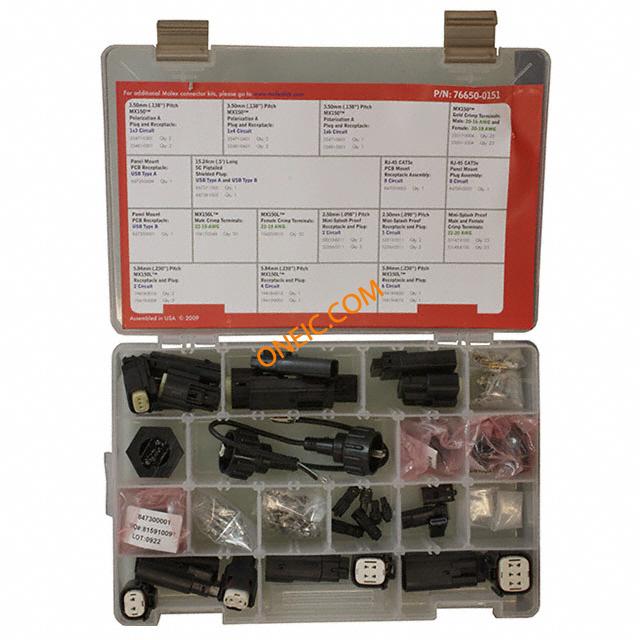

76650-0151
| 制造商 | |
| 描述 | Deluxe Splashproof Solution Kit KIT CONN MULTI SPLASH PROOF I/O Connectors SPLASH PROOF APP KIT Kit Description:Includes USB Type A and B, RJ-45, MX150L, MX150, Mini-Splashproof Product Families. Pitches range: 2.5mm (.098)" - 5.84mm (.230)"Kit Category:Wire to Wire and Wire to BoardSolution:SealedPackaging:Tackle Box: 11" by 7.25"Num. Pieces:234 DELUXE SPLASHPROOF APPLICATION KIT |
| 分类 |
商业参数
| 产品 | Kits | 标准包装规格 | 1 |
| 零件号别名 | 0766500151 | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 25, 30, 150, 250, 600 V | 最大额定电流 | 1 A , 1.5 A , 18 A , 22 A |
机械参数
| 间距 | 2.5 mm, 3.5 mm, 5.84 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 22-20, 22-18, 20-18 | 连接器类型 | Plugs and Receptacles |
| 接触镀层 | Gold | 安装样式 | Panel , PCB |
| 端接样式 | Crimp | ||
产品信息
| 连接器性别 | Male / Female | 系列 | 76650 |
| 值 | 234 pcs - Assorted 2 ~ 4, 6 Plug, Receptacle, USB Assembly, 22 ~ 18 AWG Crimp Terminals | 套件类型 | Contact, Plug, Receptacle, USB |
| 制造商全称 | 76650 | 配置 | Wire-to-Board, Wire-to-Wire |
| 电路数 | 2, 3, 4, 6 | ||
文档与媒体
相关型号
50147-8100
Molex
Headers & Wire Housings LOOSE TERMINALS Contact PIN Crimp ST Cable Mount Bag CRIMP PIN, MIZU-P25, 125V, 22-20 AWG Molex Mizu-P25 系列 公 压接接线端子, 压接, 镀锡触点
19418-0018
Molex
Automotive Connectors RECPT 4P 22-18 AWG dual row
19418-0016
Molex
Automotive Connectors RECPT 2P 22-18 AWG single row CONN RECEPT 2POS 18-22AWG SINGLE

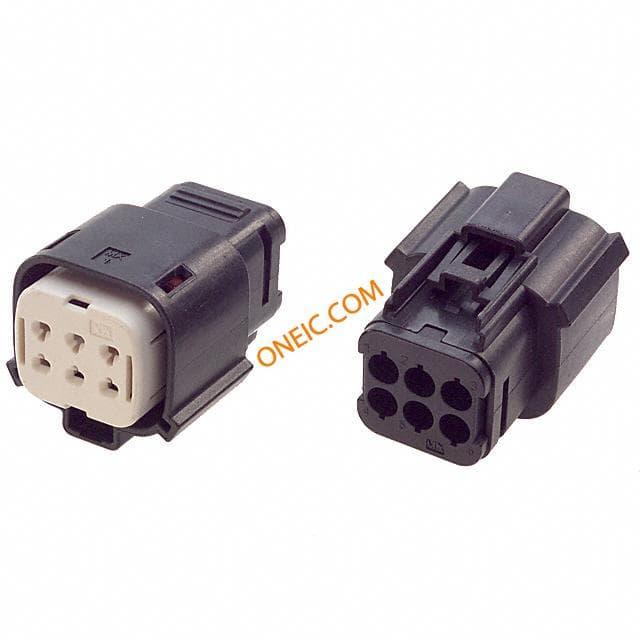

19418-0020
Molex
Automotive Connectors RECPT 6P 22-18 AWG dual row CONN RECEPT 6POS 18-22AWG DUAL

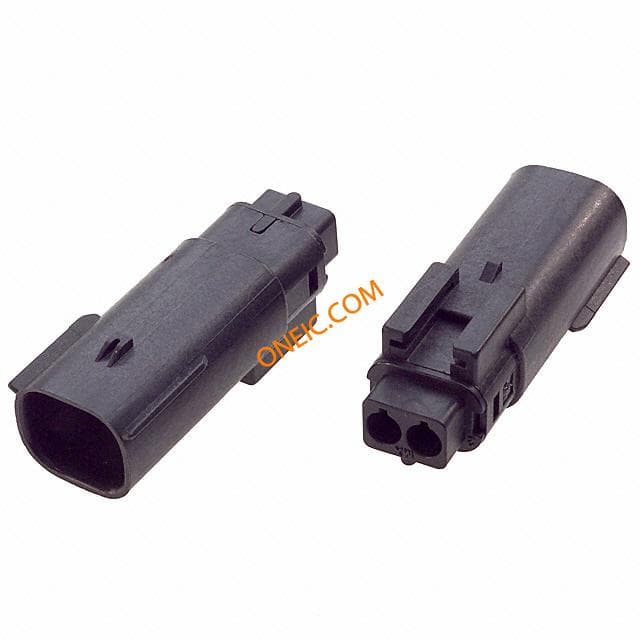

19419-0008
Molex
Automotive Connectors PLUG 2P 22-18 AWG single row CONN PLUG 2POS 18-22AWG SINGLE 2 way 18-22AWG IP67 plug connector 2 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 2 MX150L™, 19419-0008, Molex Molex MX150L 系列 5.84mm 节距 2 路 直 公 压接连接器外壳

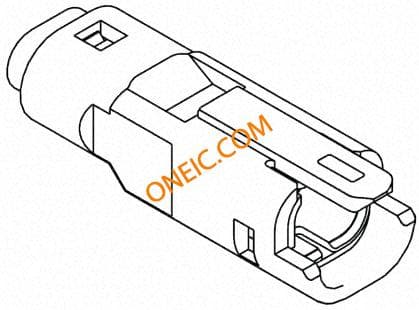

52266-0211
molex
Conn Housing PL 2 POS 2.5mm Crimp ST Tray 2w WTW splashproof plug housing 2.5mm Headers & Wire Housings 2.5MM WIRE PLUG Mizu-P25™ 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 2 Circuits PLUG, 125V, BLACK, 2WAY .089 pitch splash proof wire to wire housing 2 circuit Plug; Connector: wire-wire; Mizu-P25; male; PIN:2; w/o terminals Molex Mizu-P25 系列 2.5mm 节距 2 路 直 公 压接连接器外壳

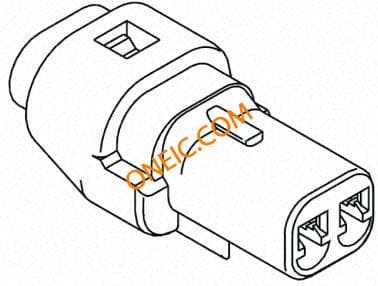

52213-0211
