点击放大查看

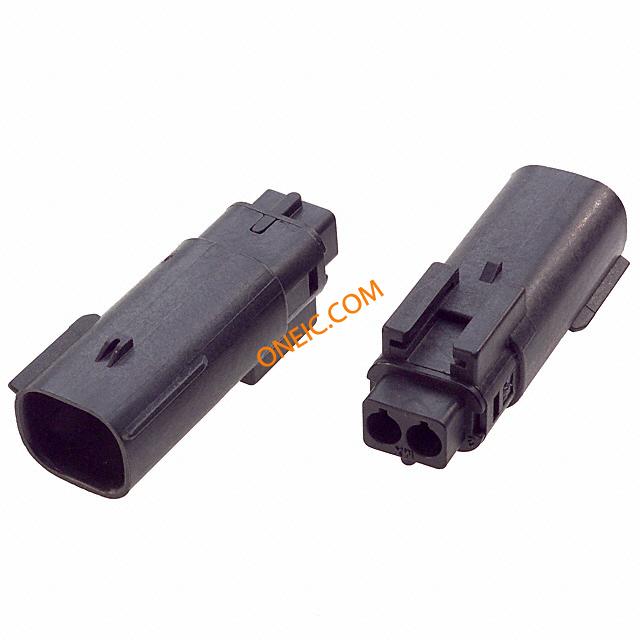

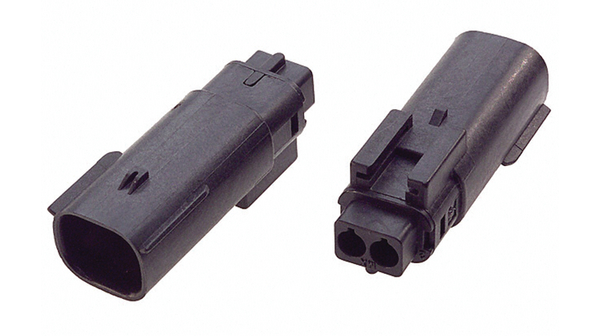

19419-0008
| 制造商 | |
| 描述 | Automotive Connectors PLUG 2P 22-18 AWG single row CONN PLUG 2POS 18-22AWG SINGLE 2 way 18-22AWG IP67 plug connector 2 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 2 MX150L™, 19419-0008, Molex Molex MX150L 系列 5.84mm 节距 2 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 产品 | Housings | 商标名 | MX150L |
| 零件号别名 | 0194190008 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 312 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 | 极数 | 2 |
| 最大额定电流 | 18 A | 连接器类型 - 电压输入 | Crimp |
| 保护电压（VP）（2416） | IP 67 | ||
机械参数

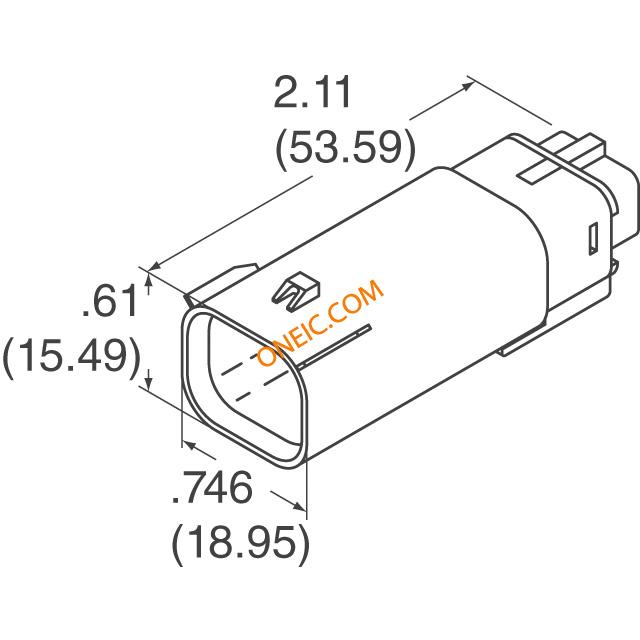

| 深度 | 53.95mm | 间距 | 0.230" (5.84mm) |
| 长度 | 18.95mm | 包装方式 | Bulk |
| 方向 | 直 | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Free Hanging | 排数 | 1 |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Crimp |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 线规或范围 - AWG | 22-18 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | 19419 | 产品特性 | IP67 |
| CAD图纸 | 3D CAD Model | 主要用途 | IP67 |
| 连接方式 | Wire-Wire | 基础产品编号 | 19419 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | MX150L 2 Circuit Plug |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
文档与媒体
相关型号
0194170029
Molex, LLC
Order Molex 0194170029 (0194170029-ND) at . , view product specifications, and order online.
0194170028
molex
Contact PIN Crimp ST Cable Mount Strip CONN MALE TERM TIN 22-18AWG
0194180007
molex
Conn Housing RCP 2 POS 5.84mm Crimp ST Bulk CONN 2 WAY RCPT 16-14AWG MX150L
19418-0017
Molex
Automotive Connectors RECPT 2P 16-14 AWG single row CONN RECEPT 2POS 14-16AWG SINGLE
19418-0016
Molex
Automotive Connectors RECPT 2P 22-18 AWG single row CONN RECEPT 2POS 18-22AWG SINGLE
19419-0001
Molex
Automotive Connectors PLUG 8P 22-18 AWG dual row 8 way 18-22AWG IP67 plug connector Molex MX150L 系列 2 行 5.84mm 节距 8 路 直 公 压接连接器外壳
76650-0151
molex
Deluxe Splashproof Solution Kit KIT CONN MULTI SPLASH PROOF I/O Connectors SPLASH PROOF APP KIT Kit Description:Includes USB Type A and B, RJ-45, MX150L, MX150, Mini-Splashproof Product Families. Pitches range: 2.5mm (.098)" - 5.84mm (.230)"Kit Category:Wire to Wire and Wire to BoardSolution:SealedPackaging:Tackle Box: 11" by 7.25"Num. Pieces:234 DELUXE SPLASHPROOF APPLICATION KIT
0194170048
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Contact; male; 18÷22AWG; MX150L; tinned; crimped; for cable; 18A
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!

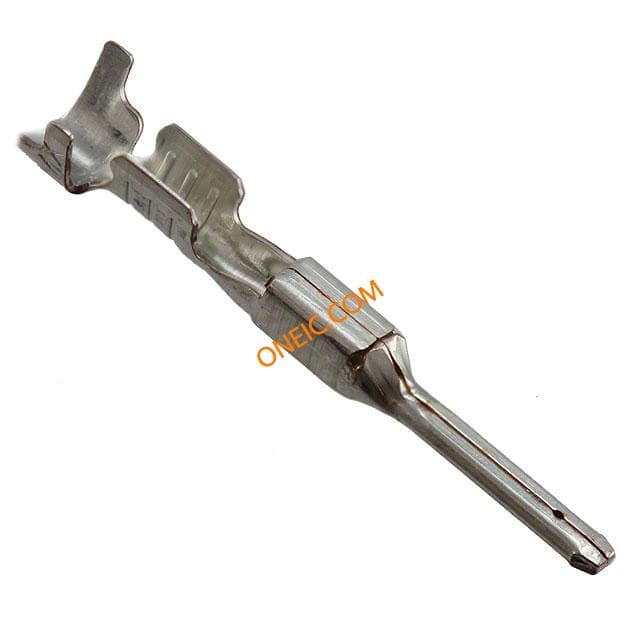

0194170024
Molex, LLC
. 0194170024 - Blade Contact Tin 18-22 AWG Crimp from Molex. from now!
0194180008
Molex, LLC
. 0194180008 - 2 Position Rectangular Housing Connector Receptacle 0.230" (5.84mm) from Molex. from now!
0194170263
Molex, LLC
. 0194170263 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!

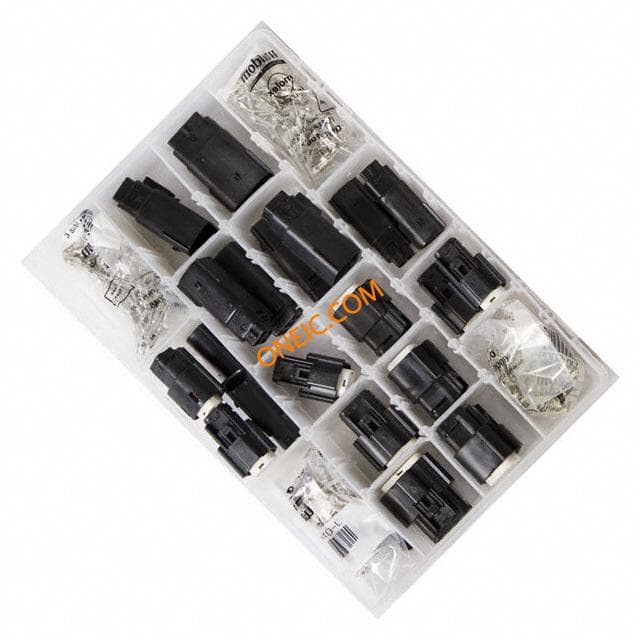

76650-0032
Molex Connector Corporation
KIT CONN MX150L SERIES Wire To Wire Kit For Plugs, Receptacles Kit Kit Description:Dual Row Sealed Plug and Receptacle, IP-67Kit Category:Wire to WireSolution:SealedPackaging:Tackle Box: 11" by 7.25"Num. Pieces:431 MX150L CONNECTOR KIT DUAL ROW SEALED PLUG & RECEPT, IP-67
0194170026
Molex, LLC
. 0194170026 - Blade Contact Gold 18-22 AWG Crimp from Molex. from now!

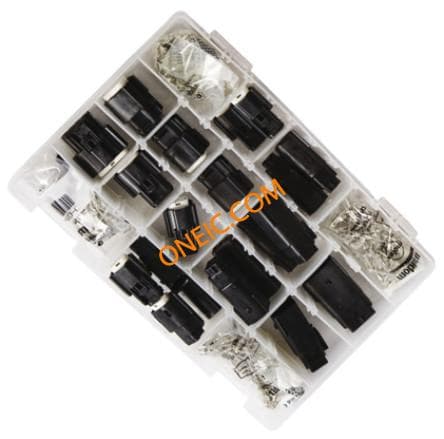

76650-3002
