点击放大查看

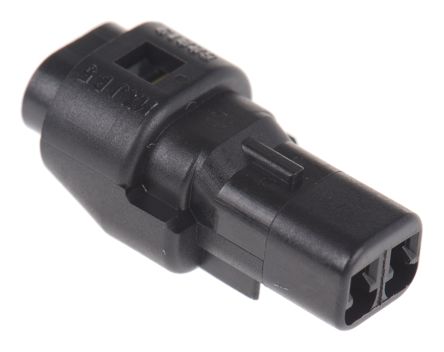

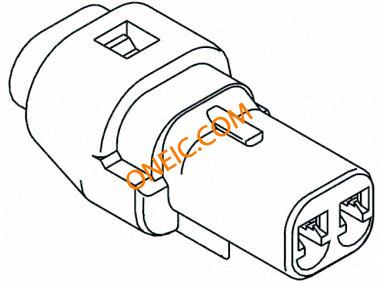

52213-0211
| 制造商 | |
| 描述 | CONN RCPT 2POS 2.5MM BLACK 2w WTW splashproof recept housing 2.5mm Headers & Wire Housings 2.50MM WIRE RECPT 2P splash proof Mizu-P25™ 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 2 Circuits PLUG AND SOCKET CONNECTOR HOUSING RECEPTACLE, 125V, BLACK, 2WAY Plug; Connector: wire-wire; Mizu-P25; female; PIN:2; w/o terminals Molex Mizu-P25 系列 2.5mm 节距 2 路 直 母 压接连接器外壳 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Mizu-P25 | 零件号别名 | 0522130211 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1350 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 最大电压 | 125V | 最大额定电流 | 4A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | :Black | 深度 | 16.5mm |
| 间距 | 2.5mm | 宽度 | 7.2mm |
| 长度 | 8.2mm | 重量 | 0.002 |
| 壳体颜色 | black | 柱间距 | 2.5mm |
| 安装类型 | Straight | 连接器类型 | :Plug & Socket |
| 安装样式 | Wire | 排数 | 1 |
| 本体材料 | :Polyester | 壳体材料 | PET |
| 包装数量 | 1350 | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 位数 | :2 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 1350 | 连接器性别 | Female |
| 系列 | 52213 | 产品子类型 | Receptacles / Sockets - Housings |
| 适配器系列 | Mizu-P25 | 单元数量 | 1 |
| 适用产品/相关产品 | Splash Proof Wire-to-Wire Receptacle | ||
环境参数
| 防护等级 | IP67 | 工作温度 | -40...125°C |
