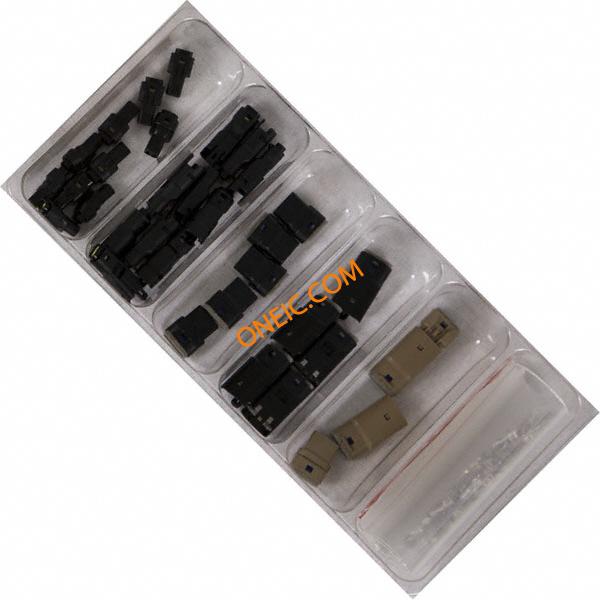

76650-0166
| 制造商 | |
| 描述 | Sealed Plug And Receptacle Kit, JIS D0203 S2 Waterproof Compliant KIT CONN SPLASHPROOF WTW I/O Connectors SPLASHPROOF.098 KIT Kit Description:Sealed Plug and Receptacle, JIS D0203 S2 Waterproof CompliantKit Category:Industrial and Wire to WireSolution:SealedPackaging:Clamshell: 9" by 4"Num. Pieces:134 SEALED SPLASH PROOF CONNECTOR KIT |
| 分类 |
商业参数
| 产品 | Kits | 标准包装规格 | 1 |
| 零件号别名 | 0766500166 | 产品类别 | I/O Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 25 V | 最大额定电流 | 3 A , 4 A |
机械参数
| 间距 | 2.5 mm | 包装方式 | Plastic Box |
| 导线线规 | 22-20 | 连接器类型 | Receptacles and Plugs |
| 安装样式 | Wire | 端接样式 | Crimp |
产品信息
| 连接器性别 | Male / Female | 系列 | 76650 |
| 值 | 120 pcs - Assorted 2 ~ 4 Circuit Housing, 22 ~ 20 AWG Crimp Terminals | 套件类型 | Rectangular - Contact, Housing |
| 制造商全称 | 76650 | 配置 | Wire-to-Wire |
| 电路数 | 2, 3, 4 | ||
