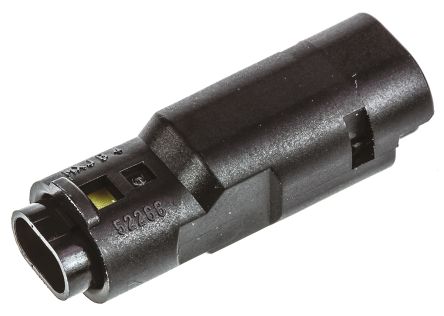

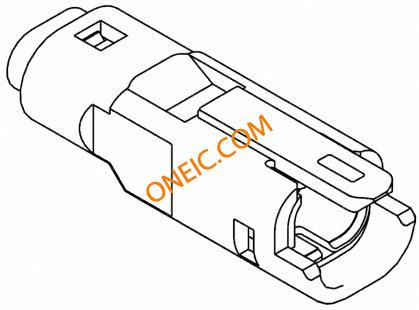

52266-0211
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 2.5mm Crimp ST Tray 2w WTW splashproof plug housing 2.5mm Headers & Wire Housings 2.5MM WIRE PLUG Mizu-P25™ 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 2 Circuits PLUG, 125V, BLACK, 2WAY .089 pitch splash proof wire to wire housing 2 circuit Plug; Connector: wire-wire; Mizu-P25; male; PIN:2; w/o terminals Molex Mizu-P25 系列 2.5mm 节距 2 路 直 公 压接连接器外壳 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Mizu-P25 | 零件号别名 | 0522660211 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | Compliant | 海关税号 | 82032000 |
电气参数
| 最大电压 | 125V | 最大额定电流 | 4A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 深度 | 25.2mm | 间距 | 2.5 mm |
| 宽度 | 7.25mm | 长度 | 8.2mm |
| 重量 | 0.00085 | 壳体颜色 | black |
| 柱间距 | 2.5mm | 安装类型 | Straight |
| 连接器类型 | male | 安装样式 | for cable |
| 排数 | 1 | 本体材料 | :Polyester |
| 壳体材料 | PET | 包装数量 | 900 |
| 连接器 - 电缆 | plug | 触点数 | 2 |
| 位数 | :2 | ||
产品信息
| SPG | 900 | 类型 | Housing |
| 连接器性别 | PL | 系列 | 52266 |
| 产品子类型 | Wire Housings | 适配器系列 | Mizu-P25 |
| 单元数量 | 1 | 适用产品/相关产品 | Splash Proof Wire-to-Wire Plug |
环境参数
| 防护等级 | IP67 | 工作温度 | -40...125°C |
