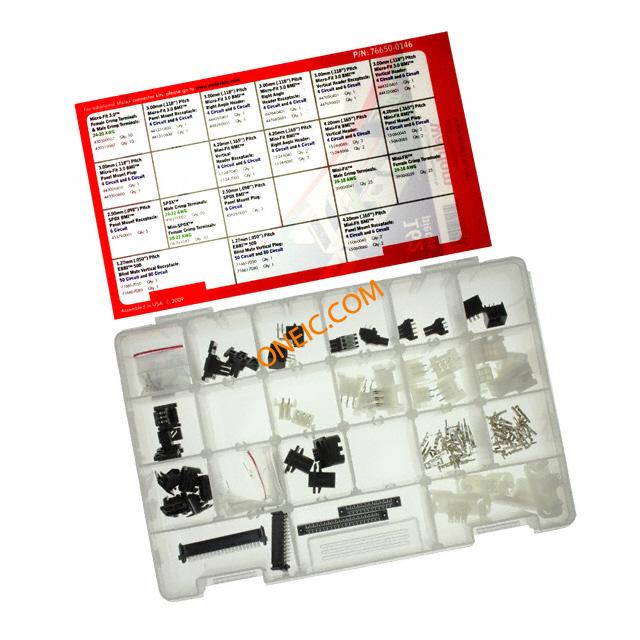

76650-0146
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, BOARD TO BOARD AND WIRE TO BOARD AND WIRE TO WIRE KIT 4,50,6,80POS 1,3,5,8-12A PANEL MOUNT VERTICAL, PLUGS,RECEPTACLE,RIGHT ANGLE HEADER 1.27MM PITCH 250V,30V,600V 24-18,24-20,24-22,22-28 WIRE SIZE KIT MULTI BMI DELUXE BLIND MATE Board to Board & Mezzanine Connectors BLINDMATE CONN KIT DELUXE COMPONENT KITS, BOARD TO BOARD AND WIRE TO BOARD AND WIRE TO WIRE KIT 4,50,6,80POS 1,3,5,8-12A PANEL MOUNT VERTICAL, PLUGS,RECEPTACLE,RIGHT ... Kit Description:Includes EBBI 50D, SPOX BMI, Micro-Fit 3.0 BMI, Mini-Fit BMI Product Families. Pitches range: 1.27mm (.050)" - 4.2mm (.165)"Kit Category:Wire to Wire, Wire to Board and Board to BoardSolution:Blind-MatePackaging:Tackle Box: 11" by 7.25"Num. Pieces:164 DELUXE BLIND MATE APPLICATION KIT |
| 分类 |
商业参数
| 标准包装规格 | 1 | 零件号别名 | 0766500146 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 30, 250, 600 V | 额定电压 | 30 V, 250 V, 600 V |
| 最大额定电流 | 1.5 A to 12 A | ||
机械参数
| 间距 | 1.27 mm , 2.5 mm , 3 mm , 4.2 mm | 包装方式 | Plastic Box with Bin Guide |
| 导线线规 | 22-18, 24-22, 24-20, 24-18 | 连接器类型 | Plugs, Headers and Receptacles |
| 触点数 | 4, 6 | ||
产品信息
| 系列 | 76650 | 值 | 162 pcs - Assorted Header, Plug, Receptacle, 28 ~ 20 AWG Crimp Terminals |
| 套件类型 | Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Kits | 配置 | Wire-to-Board, Wire-to-Wire, Board-to-Board |
文档与媒体
相关型号
15-24-6066
Molex
Headers & Wire Housings VERTICAL HDR 6P w/drainholes CONN HEADER 6POS 4.2MM VERT TIN
15-24-7040
molex
Conn Wire to Board RCP 4 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 4POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 4P DUAL ROW Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V
15-06-0045
Molex Connector Corporation
CONN PLUG 4POS W/PANEL MNT EARS Plug Housing 4.20mm BMI UL94V-D/R,2,4w Headers & Wire Housings PLUG DUAL ROW 4POS w/panel mount ears Conn Housing M 4 POS 4.2mm Crimp ST Panel Mount Bag PLUG & SOCKET CONNECTOR, PLUG 4POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 4 路 直 公 面板安装 压接连接器外壳
15-06-0065
Molex Connector Corporation
CONN PLUG 6POS W/PANEL MNT EARS 6w D/R BMI plug housing Headers & Wire Housings PLUG DUAL ROW 6POS w/panel mount ears PLUG & SOCKET CONNECTOR, PLUG 6POS 4.2MM MINIFIT BMI PLUG PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 6 路 直 公 压接连接器外壳

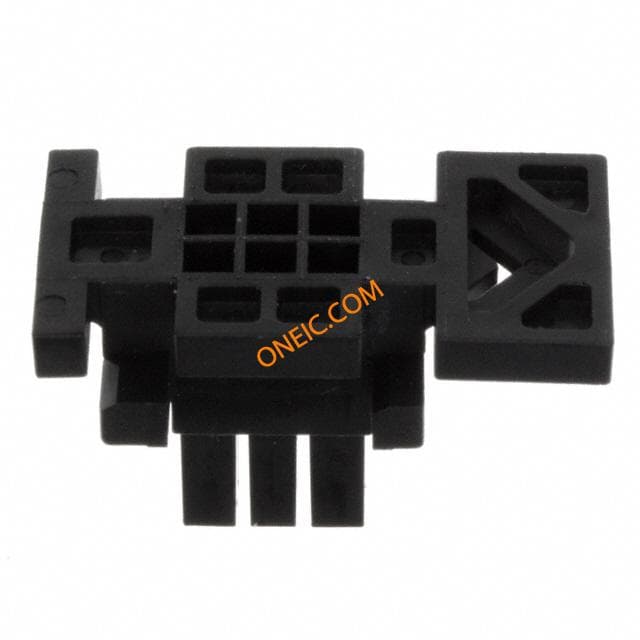

44133-0600
Molex Connector Corporation
CONN RECEPT 6POS 3MM DUAL ROW Microfit 3.0 Floating Receptacle 6 w Headers & Wire Housings BMI RECPT DUAL 6P panel mount 3.00mm Micro-Fit 3.0 BMI™ Receptacle Housing, Dual Row, Panel Mount, 6 Circuits, PBT Polyester, UL 94V-0 Crimp housing Pitch3 mm Poles 2 x 3 Double row Micro-Fit, 44133-0600, Molex Molex Micro-Fit BMI 系列 2 行 3mm 节距 6 路 直 母 压接连接器外壳

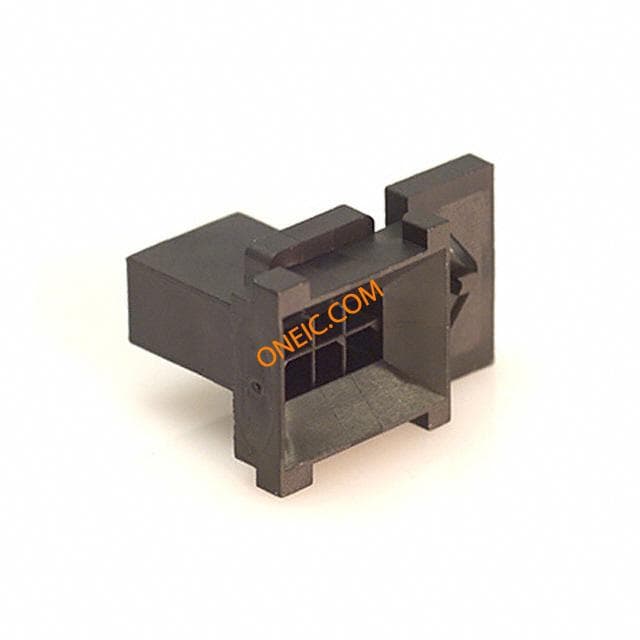

44300-0600
