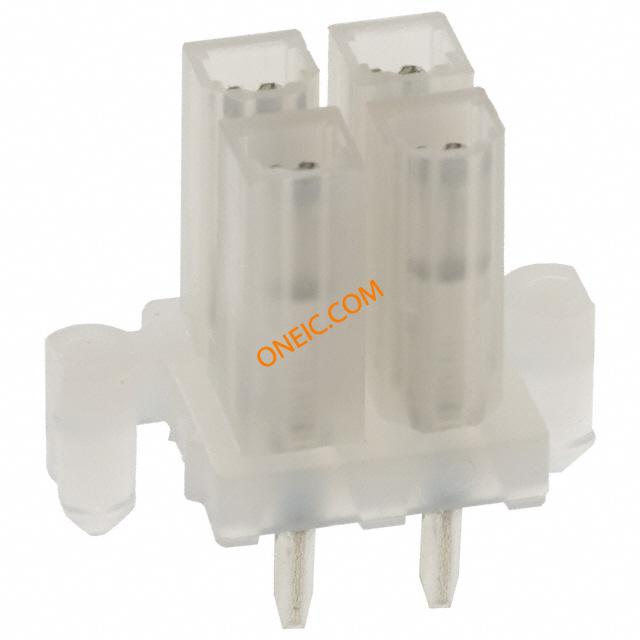

15-24-7040
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board RCP 4 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 4POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 4P DUAL ROW Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015247040 A-42385-04A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 3120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 4 | 位数 | 4 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | 42385 | 产品特性 | Board Lock |
| 制造商全称 | Mini-Fit BMI | 产品子类型 | Receptacles / Sockets - PCB |
| 电路数 | 4 | 加载位置数 | All |
文档与媒体
相关型号
0438790022
Molex, LLC
. 0438790022 - Connector Header Through Hole 4 position 0.165" (4.20mm) from Molex. from now!

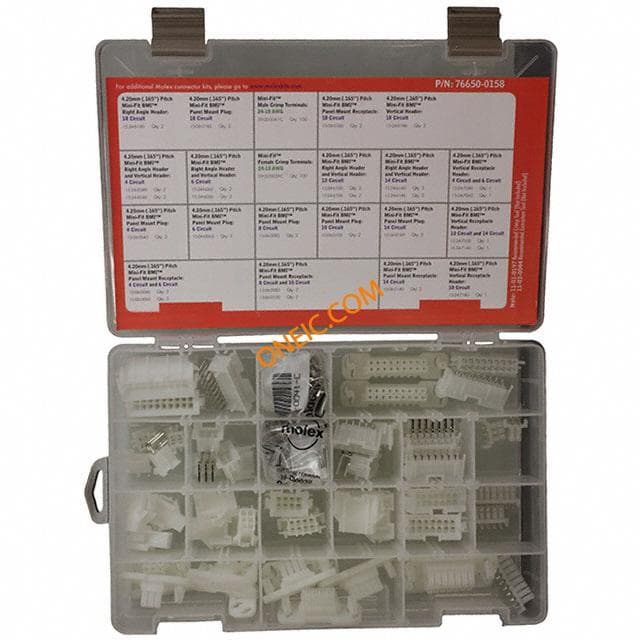

76650-0158
