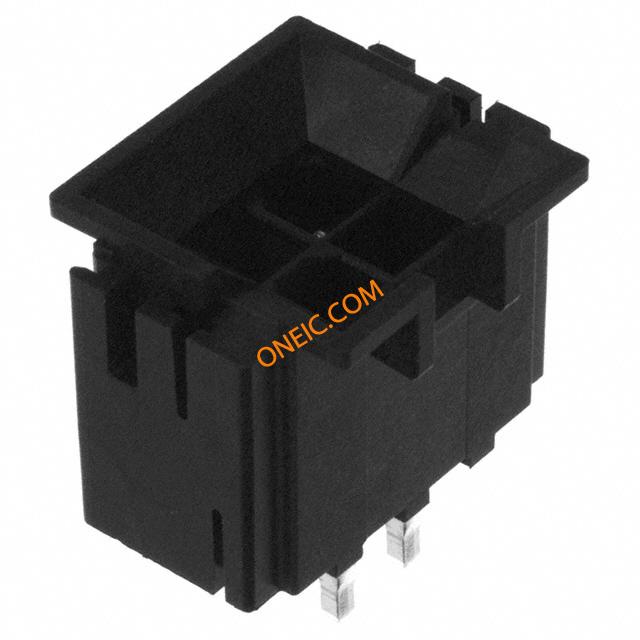

点击放大查看
0438790022
| 制造商 | Molex, LLC |
| 描述 | . 0438790022 - Connector Header Through Hole 4 position 0.165" (4.20mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 680 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 8/Contact | 最小输入电压 | 600VAC |
机械参数
| 颜色 | Black | 深度 | 15 |
| 间距 | 0.165" (4.20mm) | 高度 | 14.9 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Latch Holder |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 4/6 | 总长度 | 18.81 |
| 触点数 | 4 | 位数 | 4 |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 端口数 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | 105 | ||
