点击放大查看

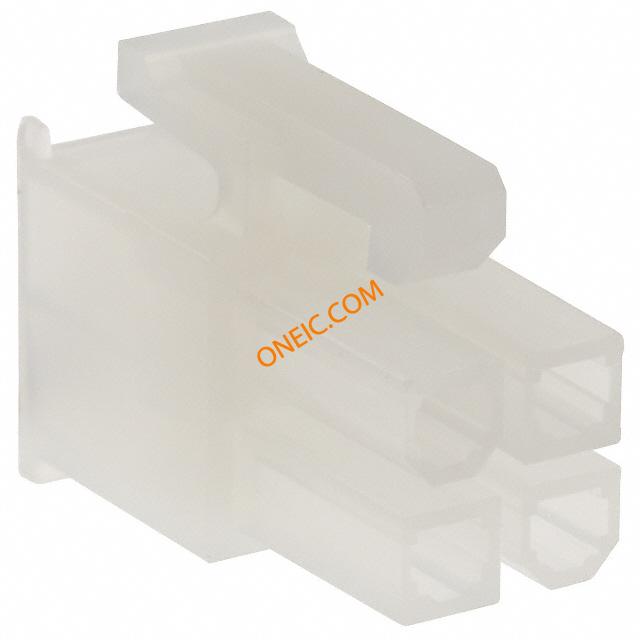

0039012040
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RECEPT 4POS DUAL |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600VDC|600VAC | 最大额定电流 | 13/Contact A |
| 最小供电电压 | 600VDC/600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 19.6 mm |
| 间距 | 4.2 mm | 高度 | 15.1 mm |
| 长度 | 9.6 | 包装方式 | Bag |
| 方向 | Straight | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 9.6 mm |
| 连接器颜色 | Natural | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 绝缘材料 - 材质 | Nylon 66 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 39-01-2040, 39012040 |
| 其他规格 | 2 | ||
环境参数
| 工作温度 | -40C to 105C | ||
