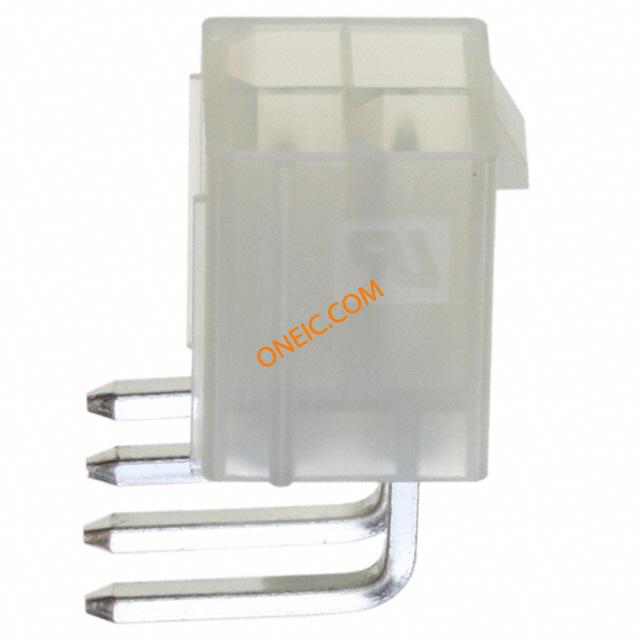

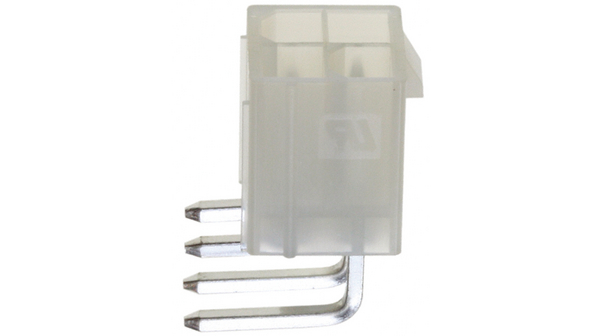

1586041-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 4POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 4 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 4P Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 4UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector;PinHeader;UL94V-2 Male connector 90° Pitch4.2 mm Poles 2 x 2 VAL-U-LOK, 1586041-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm节距 4路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 4P VAL-U-LOK R/A HDR V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DFE-230-5 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 9A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 19.6 mm | 间距 | 4.2 mm |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚长度（针脚） | 0.14" | 安装类型 | Right Angle |
| 行程角度 | Right | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 9.6 mm | 主要材料 | WiretoWire&WiretoBoard |
| 插针孔直径 | 0.165" | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 位数 | 4 | 安装孔直径 | 0.071" |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Breakaway |
| CAD图纸 | 3D CAD Model | 制造商全称 | PESeries |
| 产品子类型 | Pin Header | 端口数 | 1 Port |
| 电路数 | 4 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
文档与媒体
相关型号
106527-4
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 4POS W/POSTIVE LOCK Housing 4 way receptacle Duac Headers & Wire Housings 4-POS DUAC RECPT Conn Housing RCP 4 POS 4.2mm ST Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 4UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Housing4wayreceptacleDuac AMP-DUAC?4 Position Strain Relief Female Receptacle Housing Connector TE Connectivity AMP-DUAC 系列 2 行 4.2mm 节距 4 路 直 母 电缆安装 压接连接器外壳 04P DUAC REC HSG
1586019-4
te connectivity / amp
Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount VAL-U-LOK Series Connector System CONN RCPT 4POS DUAL FREE HANGING Housing FH 4 way Rec 4.20mm Val-u-Lok Pin & Socket Connectors HSG REC 2X02C F/P V0 Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingReceptacleNumber of Circuits = 4UL 94V-0Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RECEPTACLE, CRIMP, 4.2MM, 4WAY RECEPTACLE,HOUSING,VAL-U-LOK,4POS,DUALROW,UL94V-0 TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 4P RCPT VAL-U-LOK V0
794954-4
te connectivity / amp

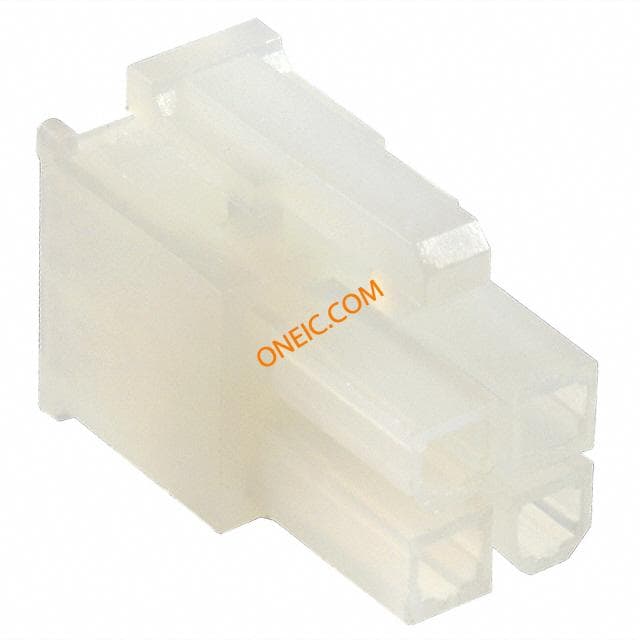

Conn Housing RCP 4 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 4POS FREE HANGING 4 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 4P Conn Housing RCP 4 POS 4.2mm ST Conn Housing RCP 4 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 4UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RCPT, DUAL ROW, 4 WAY, NYLON Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Plug; wire-board; female; PIN:4; w/o terminals; 4.2mm; for cable Female crimp housing Pitch4.2 mm Poles 2 x 2 VAL-U-LOK, 794954-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 4 路 直 母 压接连接器外壳 4P RCPT VAL-U-LOK V2
