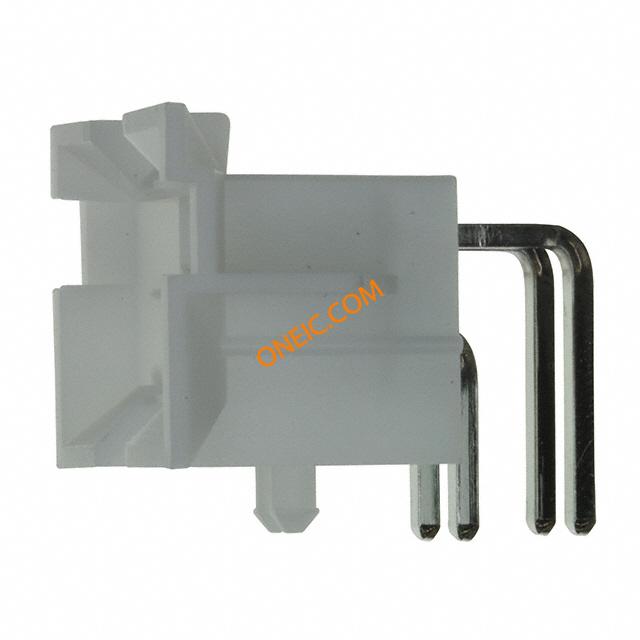

0015249044
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS 4.2MM R/A TIN |
商业参数
| 交货时间 | 51 Days | 子类别 | Connector Power |
| 标准包装数量 | 880 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact | 最小输入电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 20.7 |
| 间距 | 0.165" (4.20mm) | 高度 | 15 |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon 6/6 |
| 总长度 | 15 | 触点数 | 4 |
| 位数 | 4 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品特性 | Board Lock | 端口数 | 1 |
| 行业别名 | 15-24-9044, 15249044 | 加载位置数 | All |
环境参数
| 工作温度 | 105 | ||
相关型号
0039012045
molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 4POS DUAL
0039013042
molex
Conn Housing F 4 POS 4.2mm Crimp ST Cable Mount Bag CONN RECEPT 4POS VERT DUAL
0039012040
molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RECEPT 4POS DUAL

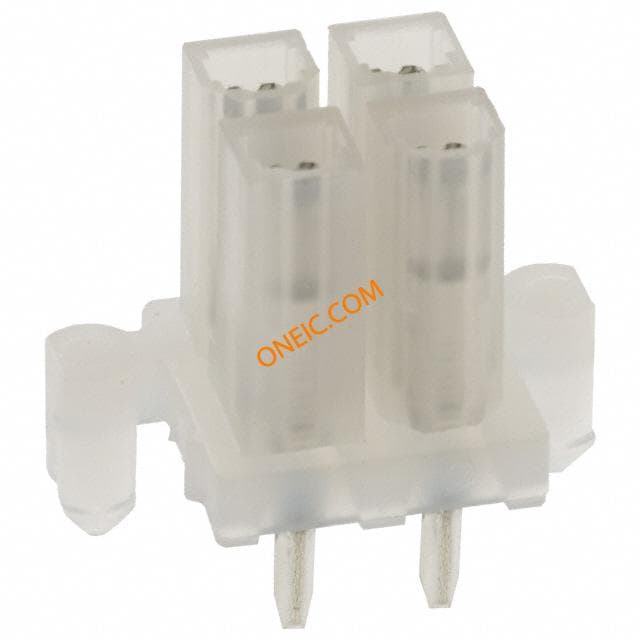

15-24-7040
molex
Conn Wire to Board RCP 4 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 4POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 4P DUAL ROW Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray MINI-FIT BMI REC HDR ASSY V
0015247043
Molex
Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray CONN HEADER 4POS 4.2MM STR GOLD Conn Wire to Board RCP 4 POS 4.2mm Solder ST Thru-Hole Tray
0424740441
Molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag MINIFIT JR BMI PMRCPT DLRW V-0
0015060042
Molex
Conn Housing RCP 4 POS 4.2mm Crimp ST Bag CONN RCPT MINI FIT JR 4POS NAT

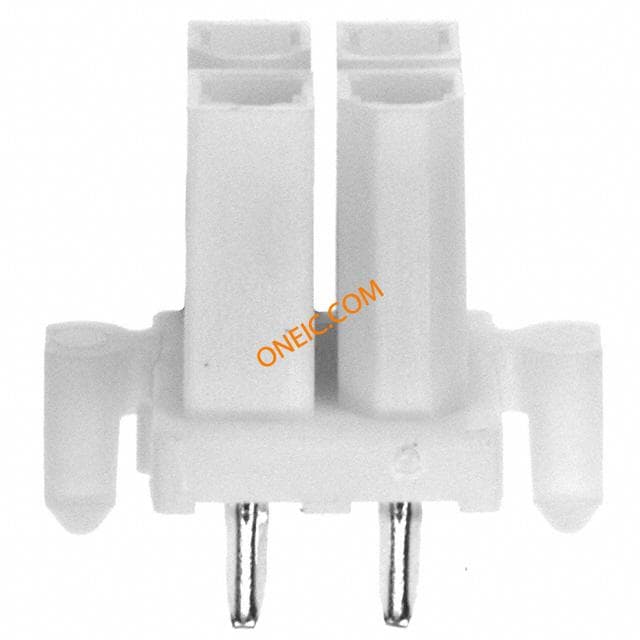

15-24-7041
Molex Connector Corporation
CONN HEADER 4POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 4P DUAL ROW Conn Power RCP 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray
15-06-0040
Molex Connector Corporation
CONN RECEPT 4POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,4w Headers & Wire Housings RECPT DUAL ROW 4POS w/panel mount ears Conn Housing RCP 4 POS 4.2mm ST Bag Conn Housing RCP 4 POS 4.2mm Crimp ST Panel Mount Bag MINIFIT BMI RCPT/PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 4 路 直 母 面板安装 压接连接器外壳

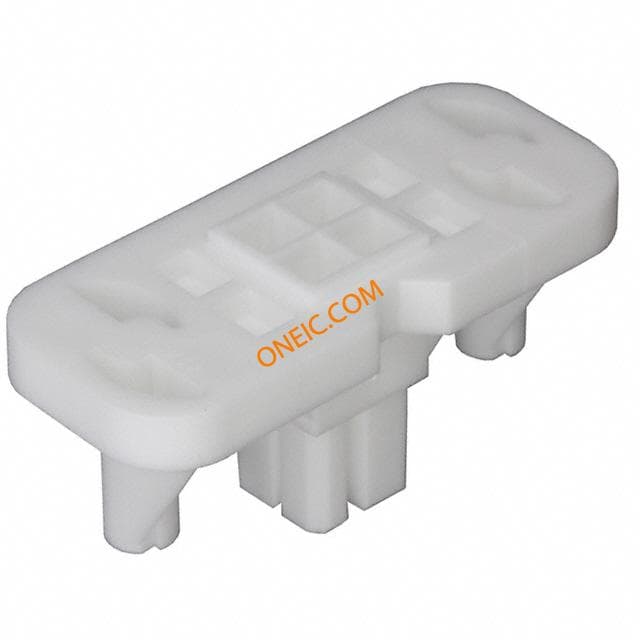

15-06-0041
