点击放大查看

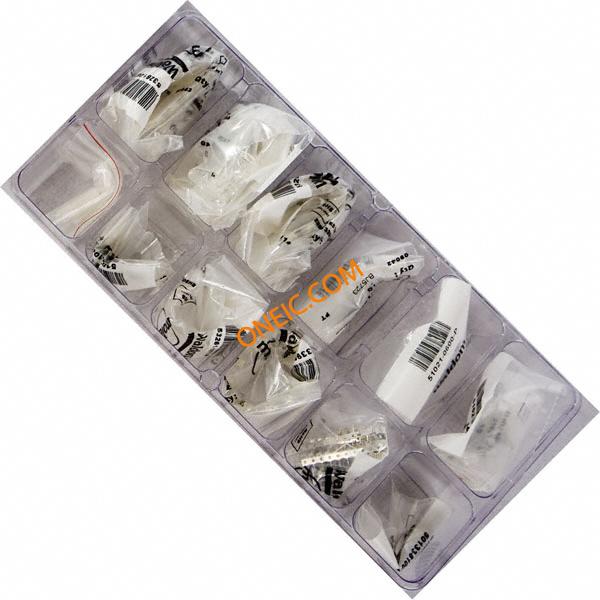

76650-0128
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,4,6,8POS 1A SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 1.25MM PITCH 125V 32-28 WIRE SIZE KIT PICOBLADE ALL INCLUSIVE Headers & Wire Housings PICOBLADE DELUXE KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 10,4,6,8POS 1A SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 1.25MM ... Kit Description:Friction Lock Plug and Receptacle and SMT Header Kit Category:Wire to Wire and Wire to BoardSolution:Off the Board and Free HangingPackaging:Clamshell: 12.75" by 6"Num. Pieces:360 PICOBLADE DELUXE CONNECTOR KIT FRICTIONLOCK PLUG & RECEPT & SMT HEADER |
| 分类 |
商业参数
| 商标名 | PicoBlade | 标准包装规格 | 1 |
| 零件号别名 | 0766500128 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 125 V | 额定电压 | 125 V |
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 1.25 mm | 包装方式 | Plastic Box |
| 导线线规 | 32-28 | 安装类型 | Right, Straight |
| 连接器类型 | Receptacle and Headers | 端接样式 | SMD, Through Hole |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 系列 | 76650 | 值 | 280 pcs - Assorted 4, 6, 8, 10 Circuit Header, Housing, 32 ~ 28 AWG Crimp Terminals |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board, Wire-to-Wire |
| 电路数 | 4, 6, 8, 10 | ||
