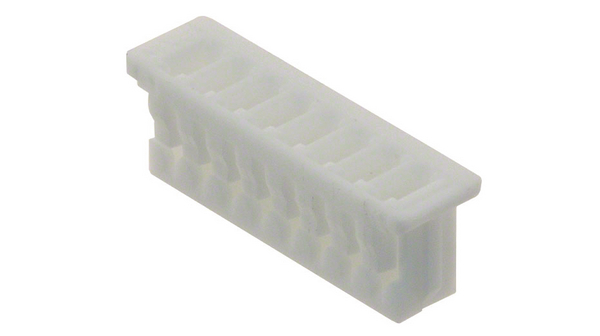

点击放大查看
51021-0800
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 8POS 1.25MM 8 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 8 POS Conn Housing F 8 POS 1.25mm Crimp ST Cable Mount Bag HOUSING, RECEPTACLE, 8WAY, 1.25MM 1.25mm Wire-to-Board Receptacle Housing; 8 Circuit Crimp housing 1.25 mm Poles 8 PicoBlade, 51021-0800, Molex Molex PICOBLADE 系列 1.25mm 节距 8 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510210800 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 51021 Series | 额定电压 | :125V |
| 工作电压 | :125V | 接触电阻 | :20mohm |
| 介电强度 | :250V | 最大额定电流 | :1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 深度 | 3.95mm | 间距 | 1.25mm |
| 宽度 | 3.2mm | 长度 | 11.75mm |
| 重量 | 0.007 | 端接方式 | :Crimp |
| 安装类型 | Straight | 接触镀层 | :- |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :GF Nylon UL94V-0 | 触头材料 | :- |
| 壳体材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | :Crimp | ||
产品信息
| 连接器性别 | Female | 系列 | 51021 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | :85°C | ||
文档与媒体
相关型号
06-66-0013
Molex
Cable Assemblies 50058 12 CUSTOM Socket to socket crimped lead,300mm L Specialized Cables 50058 12 CUSTOM Discrete Wire, 28AWG, 0.30m RED -wire LEAD, SKT/SKT, 300MM, 28AWG, PK10 Pre-crimped lead 2 x female 300 mm red, 06-66-0013, Molex Molex 测试引线 300mm长
06-66-0012
Molex
Cable Assemblies 1.25 MM 28 AWG DISCRETE CABLE Socket to socket crimped lead,150mm L Specialized Cables 1.25 MM 28 AWG DISCRETE CABLE Cable Assembly Discrete Wire 0.152m 28AWG Crimp Terminal to Crimp Terminal F-F Crimp-Crimp Bag LEAD, SKT/SKT, 150MM, 28AWG, PK10 Pre-crimped lead 2 x female 150 mm red, 06-66-0012, Molex Molex 测试引线 150mm长
06-66-0015
molex
Cable Assembly 0.304m 28AWG Crimp Terminal F Crimp Cable Assemblies DISCRETE WIRE 28AWG 0.30M RED Socket to free end crimped lead,300mm L Specialized Cables DISCRETE WIRE 28AWG 0.30M RED LEAD, SKT/FREE END, 300MM, 28AWG, PK10 Pre-crimped lead 1 x female-1 x free end 300 mm red, 06-66-0015, Molex Molex 测试引线 300mm长
53261-0871
molex
Conn Shrouded Header HDR 8 POS 1.25mm Solder RA SMD Embossed T/R Molex 53261 Series 1.25mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM HDR 8 CKT Right-Angle HEADER, SMT, RIGHT ANGLE, 1.25MM, 8WAY WIRE-BOARD CONNECTOR HEADER 8POS, 1.25MM Pin header 90° SMD 1.25 mm Poles 8 PicoBlade, 53261-0871, Molex Molex PICOBLADE 系列 1.25mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装
53398-0871
molex
Conn Wire to Board HDR 8 POS 1.25mm Solder ST SMD Embossed T/R Molex 53398 Series 1.25mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings VERTICAL HDR SMT 8P CONNECTOR, HEADER, SMT, 1.25MM, 8WAY Conn; Rect; Header; 1.25 mm Pitch; PCB; 8 Cir; Ver; SMT; PicoBlade; LF Pin header SMD 1.25 mm Poles 8 PicoBlade, 53398-0871, Molex Molex PICOBLADE 系列 1.25mm节距 8路 (1排) 直 PCB 针座, 焊接端接, 1A , 表面安装
50079-8000
molex
Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings TERMINAL 26-28 REEL Crimp terminal,1.25mm, 26-28AWG Headers & Wire Housings PCBLD TERM 26-28G F Reel of 25000 CONTACT, SOCKET, 26AWG, CRIMP CONTACT, CRIMP, RECEPTACLE, 26AWG, REEL 049 pitch picoblade crimp terminal 26-28 awg 25k ree; Crimp contact reel Female 28...26 AWG, 50079-8000, Molex Molex PICOBLADE 系列 母 压接接线端子, 压接, 镀锡触点

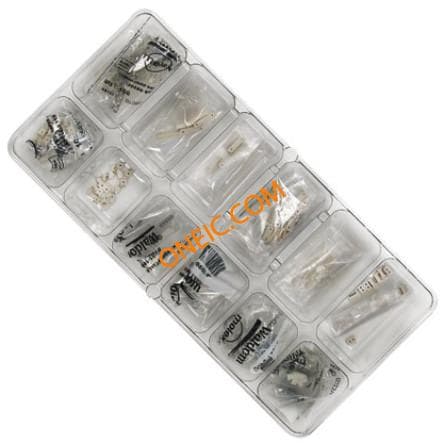

76650-3018
