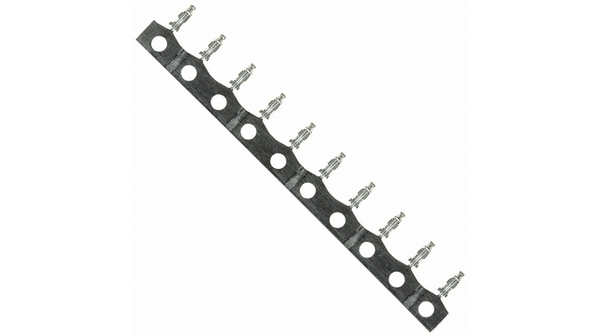

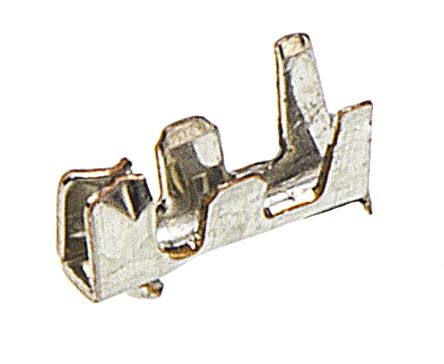

50079-8000
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings TERMINAL 26-28 REEL Crimp terminal,1.25mm, 26-28AWG Headers & Wire Housings PCBLD TERM 26-28G F Reel of 25000 CONTACT, SOCKET, 26AWG, CRIMP CONTACT, CRIMP, RECEPTACLE, 26AWG, REEL 049 pitch picoblade crimp terminal 26-28 awg 25k ree; Crimp contact reel Female 28...26 AWG, 50079-8000, Molex Molex PICOBLADE 系列 母 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0500798000 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 25000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 接触电阻 | 20mΩ | 最大额定电流 | 1 A |
| 最小供电电压 | 125V | ||
机械参数
| 深度 | 1.35 mm | 间距 | Not Required mm |
| 高度 | 1.7 mm | 长度 | 3.3 mm |
| 重量 | 0.003 | 包装方式 | Reel |
| 绝缘类型 | Not Insulated | 导线线规 | 28-26 |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 3.3 mm |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | Not Required | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :28AWG | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | 50079 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :PicoBlade Wire-to-Wire and Wire-to-Board Housings | ||
