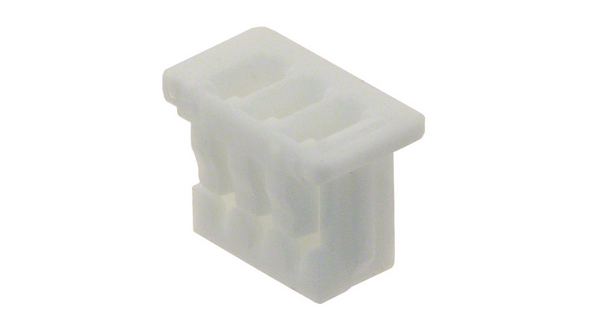

51021-0300
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 3 POS 1.25mm Crimp ST Cable Mount Bag 3 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 3 POS Conn Housing F 3 POS 1.25mm Crimp ST Cable Mount Bag 1.25mm Wire-to-Board Receptacle Housing; 3 Circuit Crimp housing 1.25 mm Poles 3 PicoBlade, 51021-0300, Molex Molex PICOBLADE 系列 1.25mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510210300 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 测试电压 | 250 | 额定电压 | 125 |
| 极数 | 3 | 接触电阻 | ≤20 mOhm |
| 最大额定电流 | 1 A | 绝缘电阻 | 100 MOhm |
机械参数
| 深度 | 3.95mm | 间距 | 1.25 mm |
| 宽度 | 3.2mm | 长度 | 5.5mm |
| 壳体颜色 | 2.5 | 方向 | 直 |
| 安装类型 | Straight | 连接器类型 | 母座 |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Tin-plated phosphor bronze | 壳体材料 | PBT |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 51021 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 放大器类型 | 5.5 |
| 连接方式 | Wire-Board | 基础产品编号 | 51021 |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | -40...+85 °C | ||
相关型号
06-66-0013
Molex
Cable Assemblies 50058 12 CUSTOM Socket to socket crimped lead,300mm L Specialized Cables 50058 12 CUSTOM Discrete Wire, 28AWG, 0.30m RED -wire LEAD, SKT/SKT, 300MM, 28AWG, PK10 Pre-crimped lead 2 x female 300 mm red, 06-66-0013, Molex Molex 测试引线 300mm长
53261-0371
molex
Conn Shrouded Header HDR 3 POS 1.25mm Solder RA SMD Embossed T/R Molex 53261 Series 1.25mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM HDR 3 CKT Right-Angle CONNECTOR, HEADER, SMT, RA, 1.25MM, 3WAY .049 pitch picoblade header, smt, ra 3 circuits Pin header 90° SMD 1.25 mm Poles 3 PicoBlade, 53261-0371, Molex Molex PICOBLADE 系列 1.25mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装
06-66-0015
molex
Cable Assembly 0.304m 28AWG Crimp Terminal F Crimp Cable Assemblies DISCRETE WIRE 28AWG 0.30M RED Socket to free end crimped lead,300mm L Specialized Cables DISCRETE WIRE 28AWG 0.30M RED LEAD, SKT/FREE END, 300MM, 28AWG, PK10 Pre-crimped lead 1 x female-1 x free end 300 mm red, 06-66-0015, Molex Molex 测试引线 300mm长
50079-8000
molex
Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings TERMINAL 26-28 REEL Crimp terminal,1.25mm, 26-28AWG Headers & Wire Housings PCBLD TERM 26-28G F Reel of 25000 CONTACT, SOCKET, 26AWG, CRIMP CONTACT, CRIMP, RECEPTACLE, 26AWG, REEL 049 pitch picoblade crimp terminal 26-28 awg 25k ree; Crimp contact reel Female 28...26 AWG, 50079-8000, Molex Molex PICOBLADE 系列 母 压接接线端子, 压接, 镀锡触点

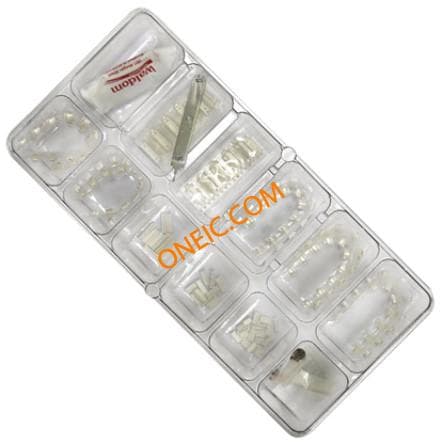

76650-3017
