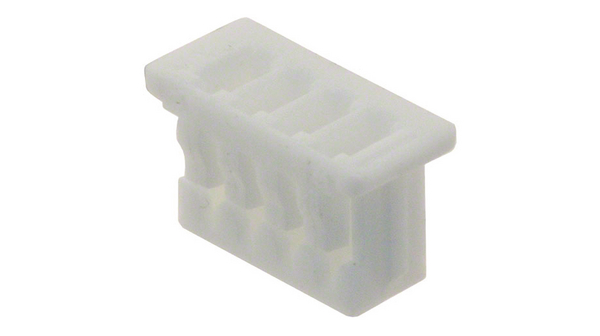

51021-0400
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 4POS 1.25MM 4 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 4 POS Conn Housing F 4 POS 1.25mm Crimp ST Cable Mount Bag CRIMP HOUSING, 1.25MM, 4WAY 1.25mm Wire-to-Board Receptacle Housing; 4 Circuit Crimp housing 1.25 mm Poles 4 PicoBlade, 51021-0400, Molex Molex PICOBLADE 系列 1.25mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510210400 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - PicoBlade 51021 Series | 额定电压 | :125V |
| 工作电压 | :125V | 接触电阻 | :20mohm |
| 最大额定电流 | :1A | 绝缘电阻 | :100Mohm |
机械参数
| 深度 | 3.95mm | 间距 | 1.25mm |
| 宽度 | 3.2mm | 长度 | 6.75mm |
| 重量 | 0.01 | 安装类型 | Straight |
| 接触镀层 | :Tin | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :Phosphor Bronze |
| 壳体材料 | PBT | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | :Crimp | 第一连接器安装类型 | :PC Board |
产品信息
| 连接器性别 | Female | 系列 | 51021 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector | ||
环境参数
| 工作温度 | :85°C | ||
