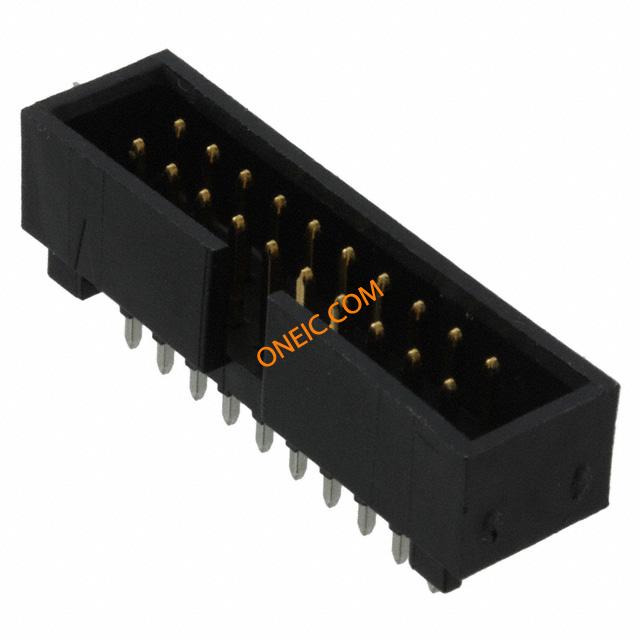

70246-2002
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 20POS .100 VERT GOLD Headers & Wire Housings 20CKT SHRD HDR |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0702462002 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 720 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 20 |
| 位数 | 20 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 70246 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
0903270384
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
0903270386
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
90327-3320
molex
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 20POS 1.27MM GOLD 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT AU Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器
15-44-3210
Molex
Headers & Wire Housings C-GRID PCB CONNECTOR CONN RECEPT 20POS .100 VERT PCB
15-45-1310
Molex
Headers & Wire Housings PCB CONN DUAL 20P CONN RECEPT 20POS .100 VERT PCB
39-51-2203
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
15-44-4510
Molex
Headers & Wire Housings Obsolete CONN RECEPT 20POS .100 VERT PCB
39-51-2204
Molex
Board to Board & Mezzanine Connectors Obsolete CONN RCPT 20POS 2.54MM IDC W/POL
0903273384
Molex
Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0022552202
Molex
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING DUAL ROW 20POS .100
16-02-0098
molex
Contact SKT Crimp ST Cable Mount Bag Crimp terminal,70058,female,sAu,24-30awg Headers & Wire Housings 24-30 TERMINAL BULK CONTACT, FEMALE, 30-24AWG, CRIMP Contact; Socket; Crimp; 30-24 AWG; SL; Gold Plate (30); 70058 Series; Bag Molex SL 系列 母 压接接线端子, 压接, 镀金镀镍触点
0015445820
Molex
Conn Socket Strip RCP 20 POS 2.54mm Solder ST Thru-Hole Tray RCPT VERT GOLD 20CKT T/H
90327-0320
Molex Connector Corporation
CONN RECEPT IDT 20POS 1.27MM TIN 20 way IDT housing,1.27mm pitch low prof Headers & Wire Housings PICOFLEX 20P HSG LOPRO IDT SN Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 20WAY Female connector 20P, 90327-0320, Molex Molex PICOFLEX 系列 2行 20路 1.27mm节距 直角 电缆安装 母 IDC 连接器
22-55-2201
Molex Connector Corporation

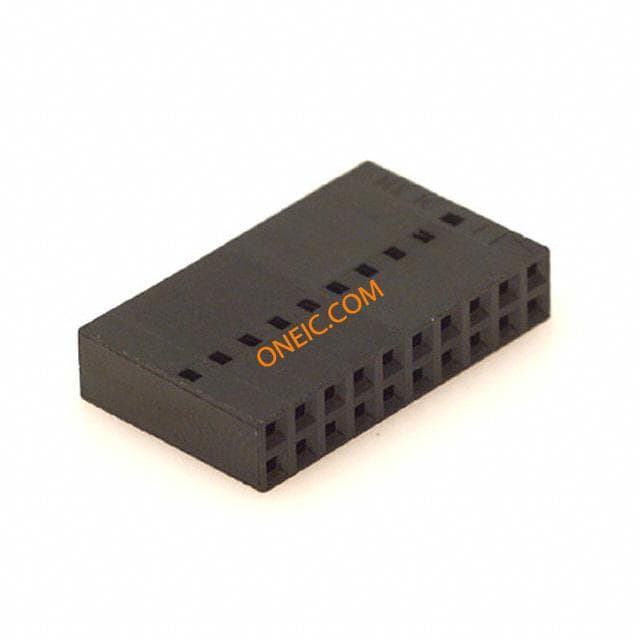

CONN HOUSING 20POS .100 DUAL Headers & Wire Housings HSG 20P DUAL ROW NON-POLARIZED Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Bag WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM DUAL ROW CRIMP CONNECTOR HOUSE; 20 CIRCUITS
