暂无图片
0903273384
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 20 POS 1.27mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT |
商业参数
| 标准包装数量 | 4,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1.2/Contact | 最小输入电压 | 250VDC|250VAC |
机械参数
| 颜色 | White | 深度 | 7 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.4 |
| 包装方式 | Bag | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 27.91 | 电缆端接方式 | IDC |
| 触点数 | 20 | 位数 | 20 |
| 接触镀层厚度 | 24µin (0.60µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through | ||
相关型号
0903250020
molex
Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 20POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 20; tinned; 1.2A
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

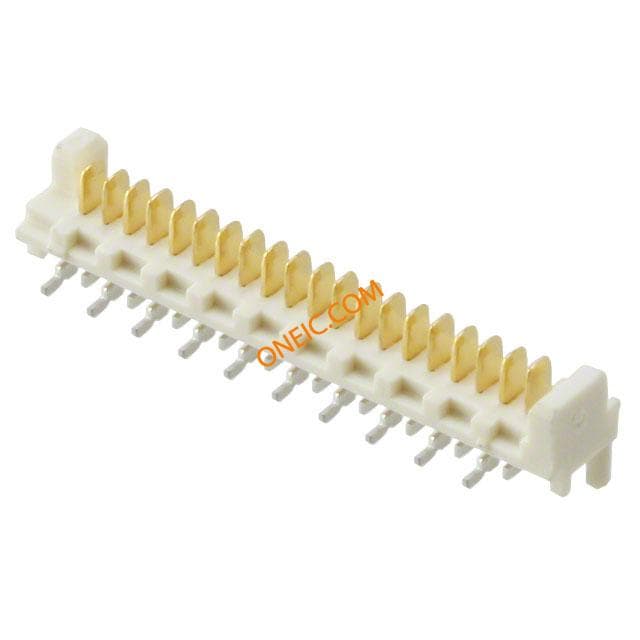

0908143820
molex
Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20PS 1.27MM SMD GOLD
70247-2051
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 15AU Headers & Wire Housings 2.54 20CKT DR RA HDR 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 20 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
70247-2052
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 20POS .100 R/A 30AU Headers & Wire Housings CGrid Hdr Shrd R.A / /OStdf .76AuLF 20Ckt HEADER, 20WAY

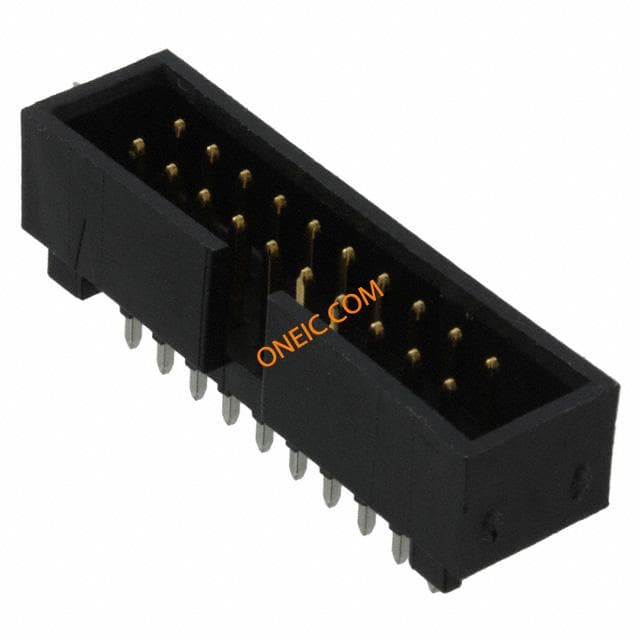

70246-2002
molex
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 20POS .100 VERT GOLD Headers & Wire Housings 20CKT SHRD HDR

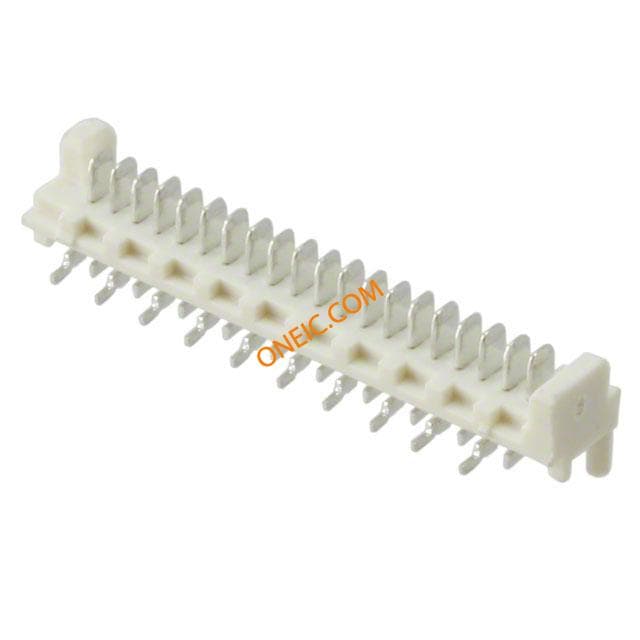

0908140820
Molex
Conn Ribbon Cable Connector HDR 20 POS 2.54mm Solder ST SMD Tube CONN HEADER 20POS 1.27MM SMD TIN

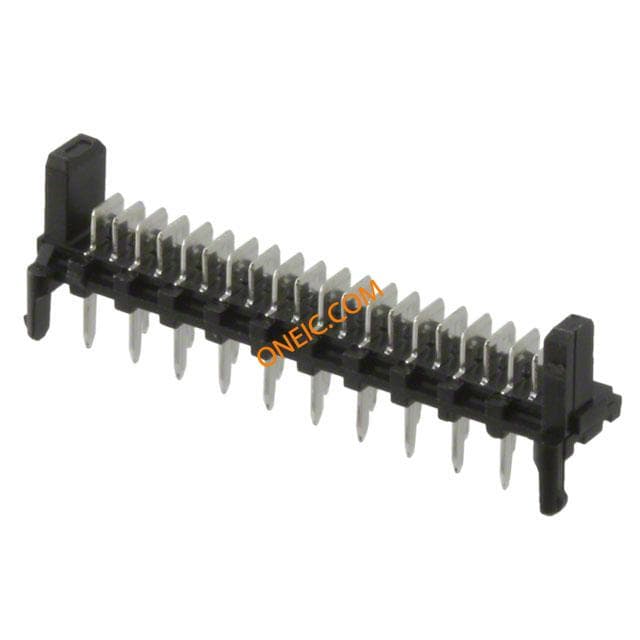

90325-9020
molex
Conn Ribbon Cable Connector HDR 20 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 20POS 1.27MM TIN T/H Headers & Wire Housings PICOFLEX 20P HDR SN R/A LP W/PCB PEGS

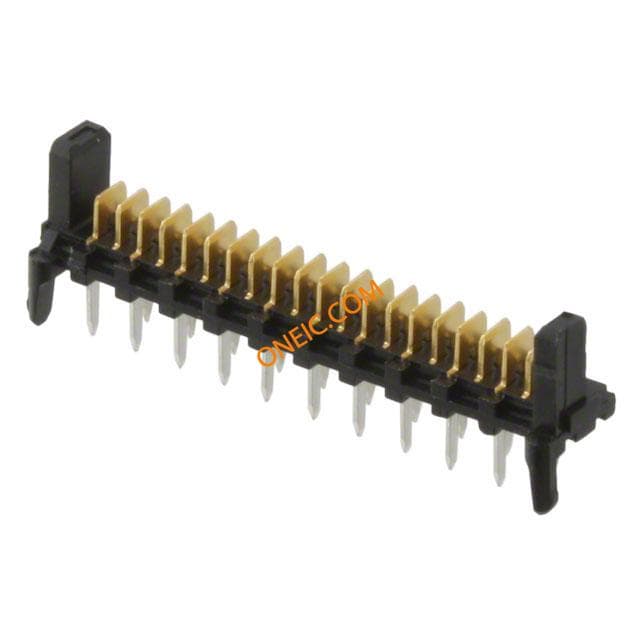

90325-7020
Molex Connector Corporation
CONN HEADER 20PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 20P HDR AU R/A LP W/PCB PEGS

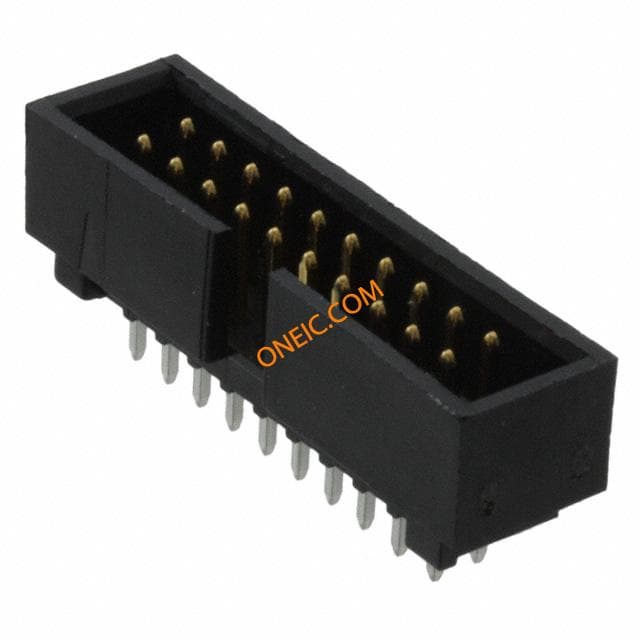

70246-2001
